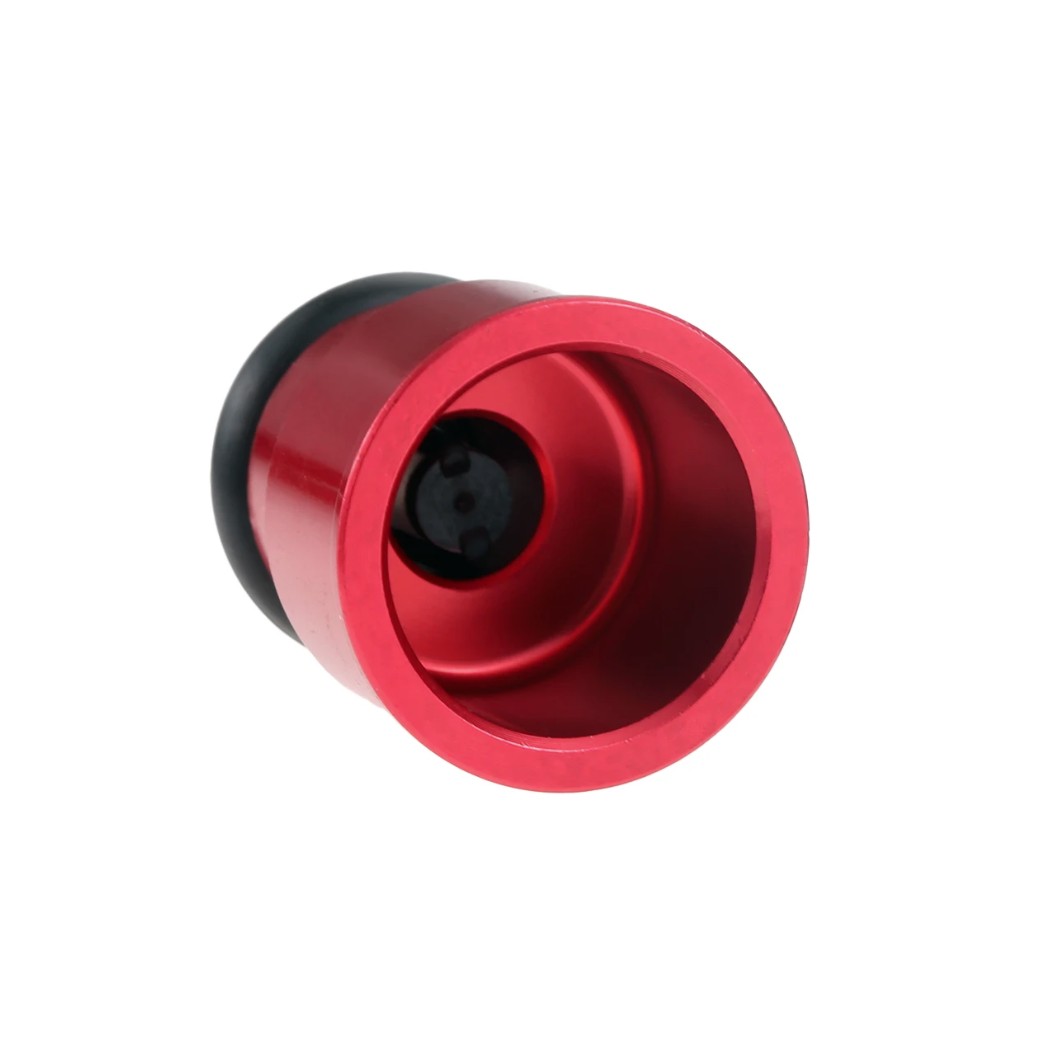

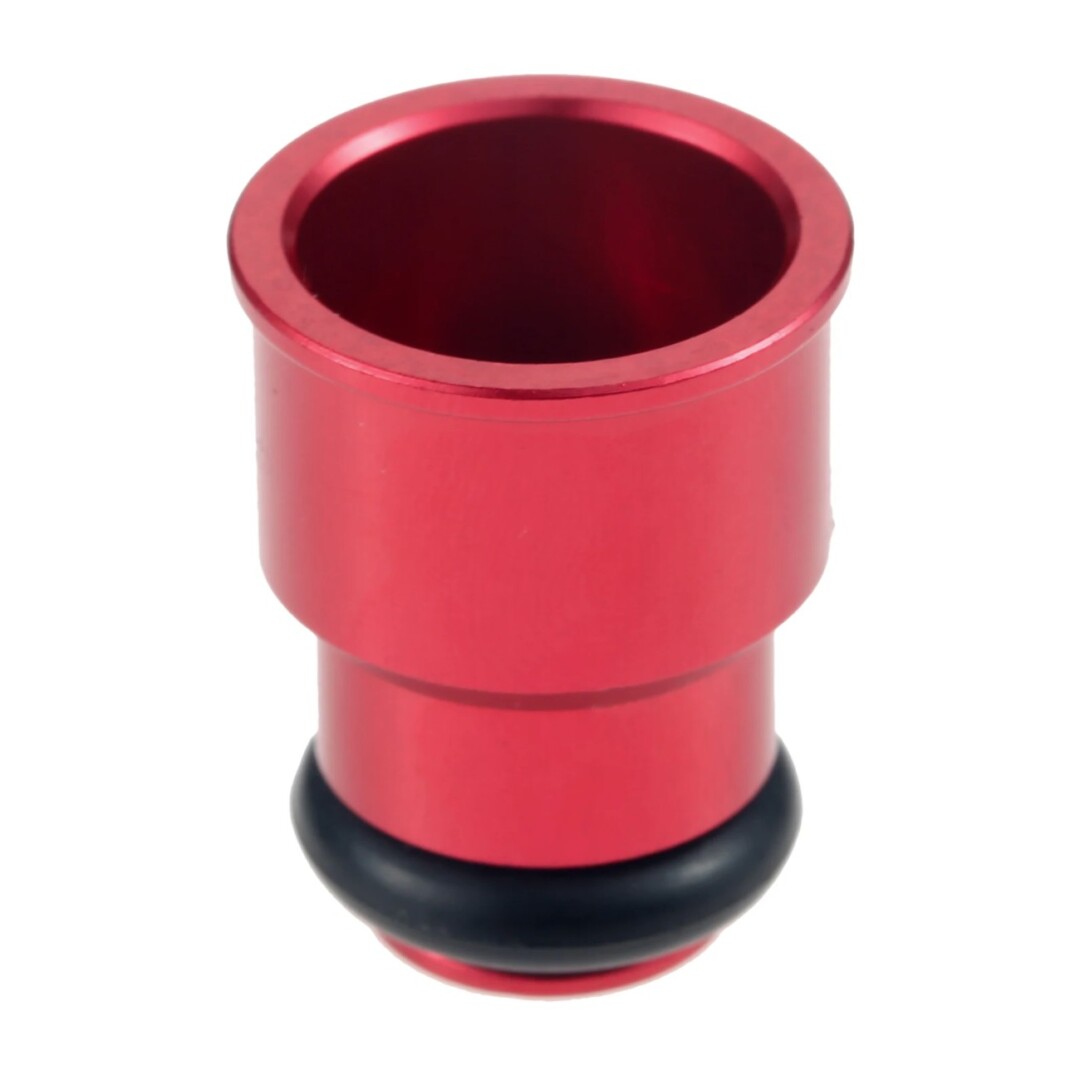

This 14mm diameter injector adaptor enables ‘short’ injectors (45 to 50mm) to be converted for use on assemblies requiring a length such as 60mm.

---

Made from red anodised CNC machined aluminium, it incorporates a crimped filter and is supplied with the injector gasket.

In certain configurations (swap, engine preparation, rail conversion), it is common to have a problem with injector length:

➡️ your manifold requires a length of 60mm
but your injectors are only 45 to 50mm long.

Result :

• poor seating in the injector well
• leaky seals
• poor alignment and impossible assembly

✅ This adapter allows you to extend and adapt your injectors for a clean and reliable fit.

It is designed for 14mm diameter injectors ( Siemens / Bosch EV1 type), particularly those used on performance assemblies (Siemens DEKA, EV1…).

✅ Integrated filter
An injector filter is crimped inside the inlet, effectively protecting the injector against :

• micro-particles
• fuel impurities
• circuit pollution

➡️ Ideal solution for serious, long-lasting, “pro” installation on a performance rail.

---

⚙️ Technical specifications

• Type : Injector adapter/extension
• Material: CNC machined aluminium
• Finish: Red anodised
• Adapter height: 23 mm
• Bottom diameter: 14 mm (designed for 14 mm Siemens / Bosch EV1 type injectors)
• Top diameter: 11 mm
• Top O-ring: Ø 14 mm
• Filter: crimped micro-filter integrated into inlet
• Injector seal: included
• Function: 45-50mm injector conversion → 60mm mounting

---

🧰 Applications

• Adapting injectors to specific manifolds
• Turbo / E85 engine preparation
• Installation of Siemens DEKA / Bosch EV1 injectors on 60 mm long mounting required
• Engine swap
• Injection refurbishment / upgrade

---

🔧 Autosport Discount Tips

• Lightly lubricate seals with fuel compatible grease before fitting
• Check that the injector and adaptor fit together perfectly
• Check for leaks after fitting (pressurisation)
• Recommended: use a quality fuel filter upstream

---

✅ Product benefits

• ✅ Solves injector length problems (45-50mm to 60mm)
• ✅ Compatible with 14mm Siemens / Bosch EV1 injectors
• ✅ Integrated crimped filter (injection protection)
• ✅ Injector gasket included
• ✅ Red anodised CNC aluminium (quality + racing look)
• ✅ Clean, reliable and durable assembly
• ✅ Perfect for turbo / E85 preparations
• ✅ Essential for performance ramps
