7-pin trailer wiring harness + pre-wired socket with wiring diagram

Code: faisceau-attelage-voiture
7-pin trailer wiring harness + pre-wired socket with wiring diagram
7-pin trailer wiring harness + pre-wired socket with wiring diagram - Image 2
7-pin trailer wiring harness + pre-wired socket with wiring diagram - Image 3
  1. 7-pin trailer wiring harness + pre-wired socket with wiring diagram
  2. 7-pin trailer wiring harness + pre-wired socket with wiring diagram - Image 2
  3. 7-pin trailer wiring harness + pre-wired socket with wiring diagram - Image 3

Tow bar for towing vehicles:

  • European standard 7 pins
  • Complete kit ready to wire
  • Length: 2 metres

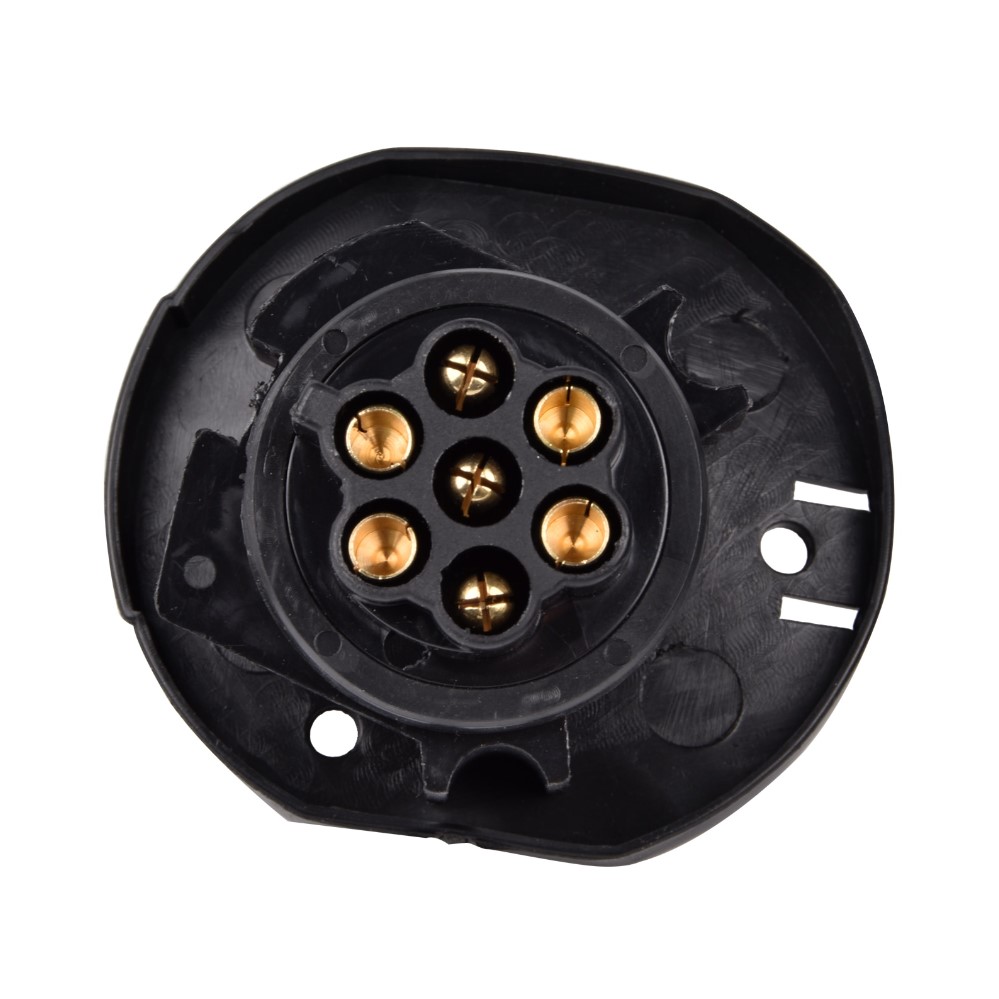

  • Round socket with cap and brackets
  • Tightness: IP66

  • Supplied with European standard wiring instructions.

39,90€

3 in stock (can be backordered)

3 in stock (can be backordered)

đźšš

Delivery expected on Wednesday 7 May

If you order in the next 9 h and 42 min.

Share (0)
Total: 0 Total: 0 Total: 0

Tow bar for towing vehicle

Build your tow bar

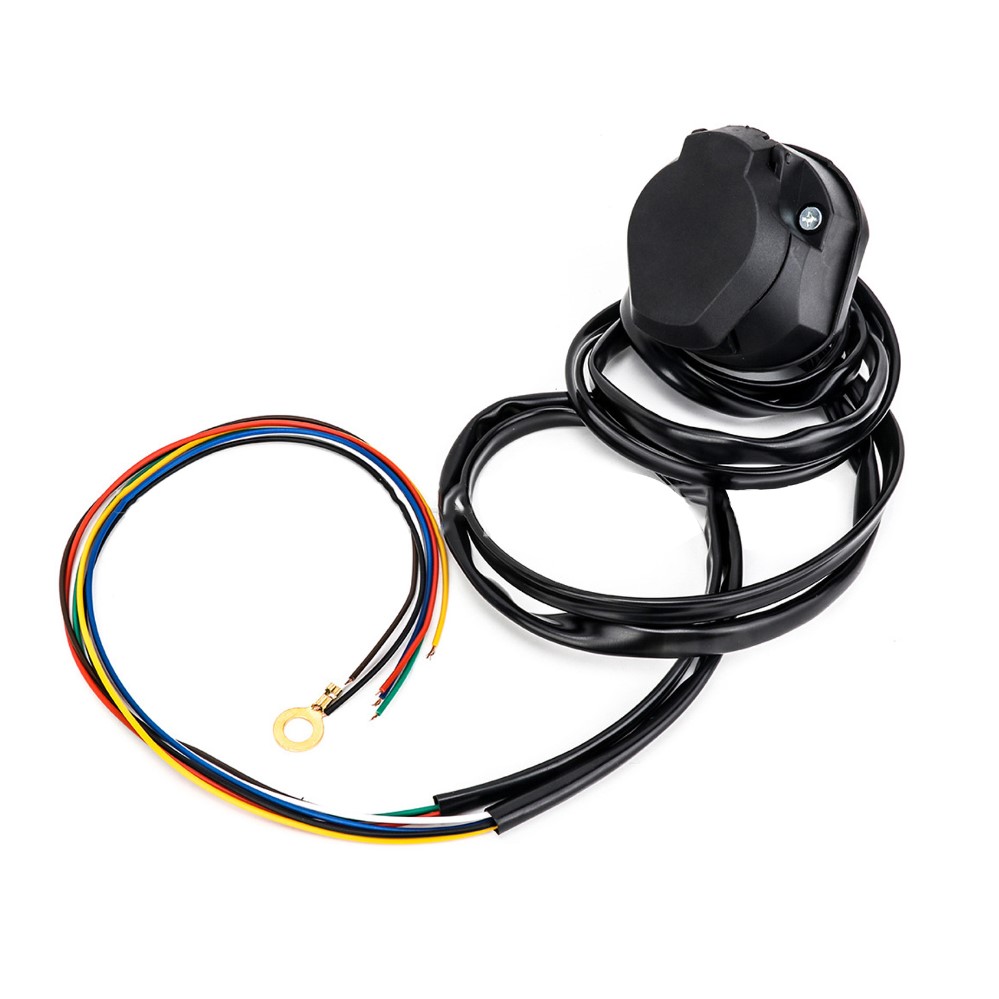

Harness + socket to install a towing socket on a vehicle.

Plug-in wiring harness kit including:

  • 7-pin round plug
  • Electrical wiring diagram
  • Length: 2.80 metres
  • Sheath diameter: 10mm
  • Plug with safety cap
  • Tightness: IP66
  • Maximum voltage: 48 volts
  • Maximum current: 15 amps

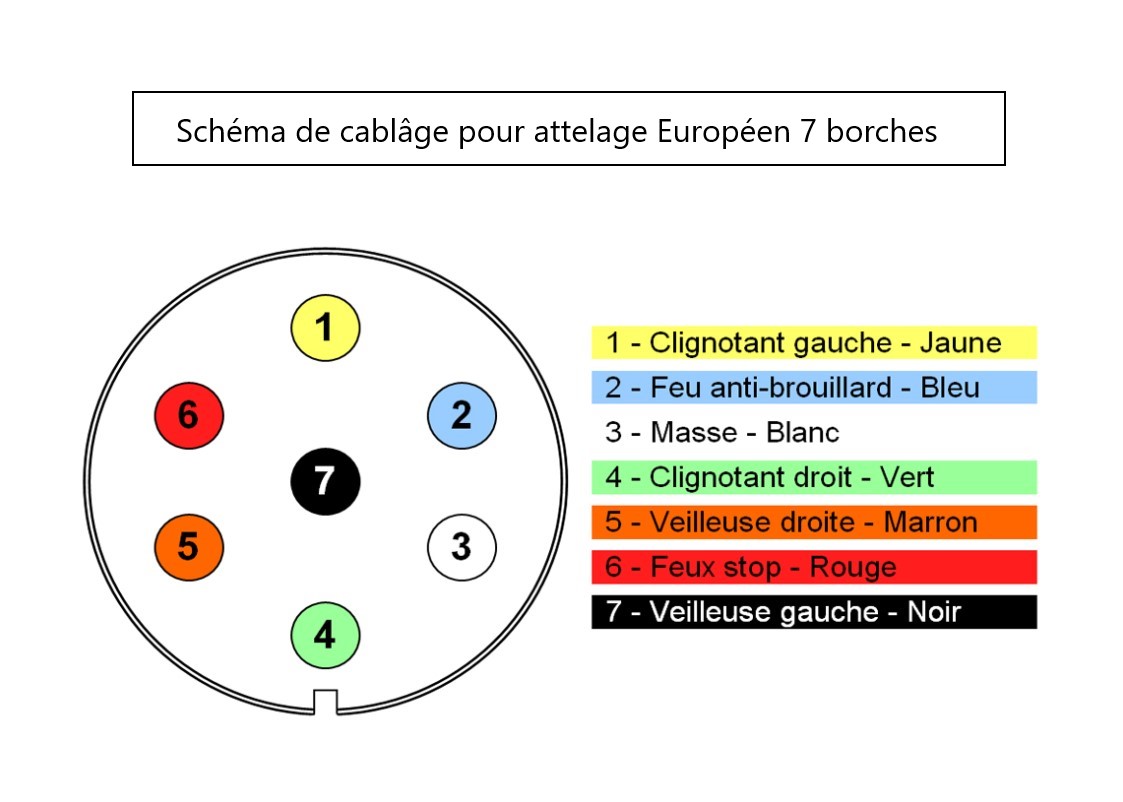

European standards for marking wires for towing sockets :

  1. Yellow wire: Left indicator
  2. Blue wire: Fog lamp
  3. White wire: Ground
  4. Green Wire: Right Turn Signal
  5. Brown wire: Right-hand night light
  6. Red Wire: Stop Light
  7. Black Wire: Left Night Light
