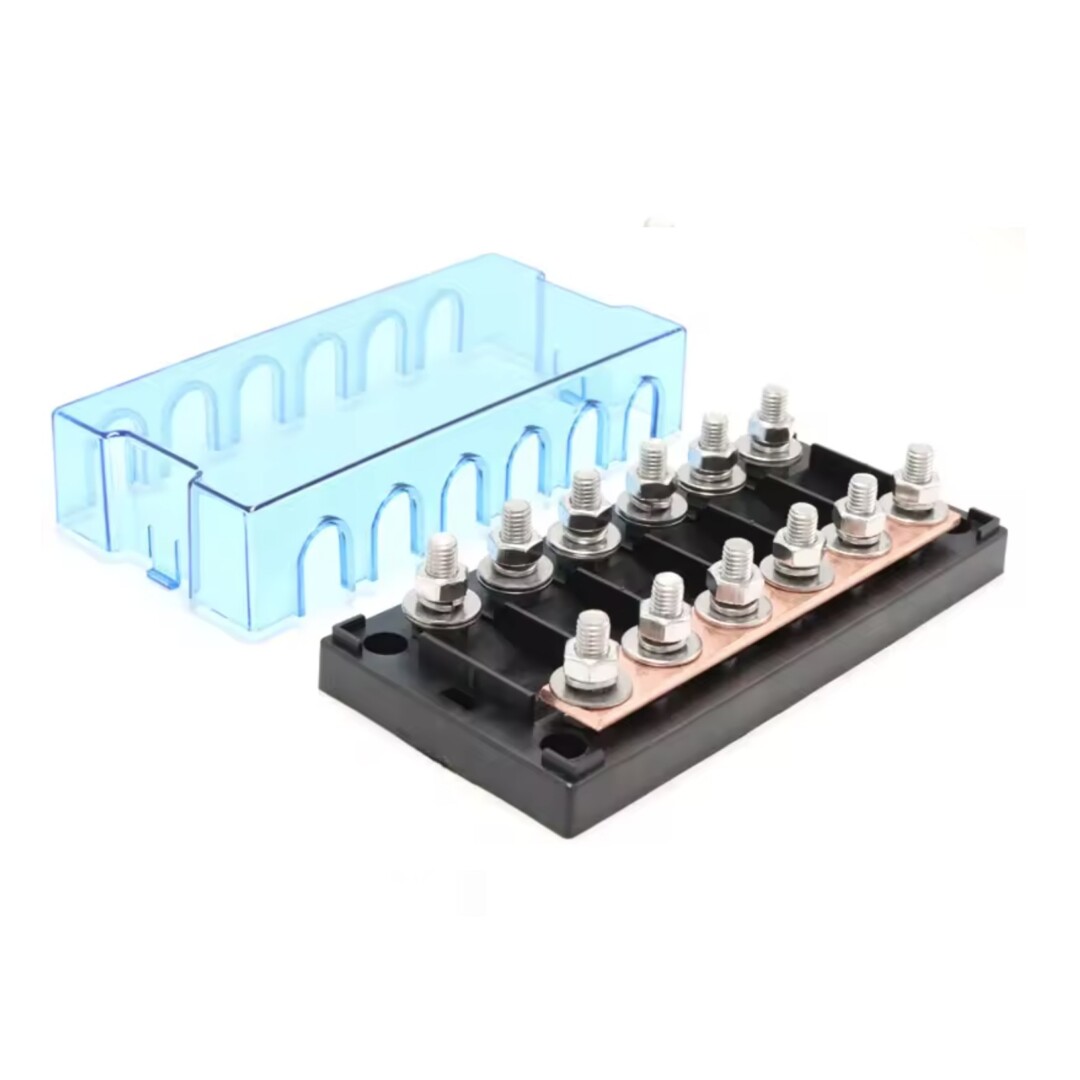

6-slot high-power fuse box, designed to supply and protect power-hungry equipment efficiently

---

Thanks to its internal solid copper busbar, the power supply is perfectly distributed and balanced on each channel, guaranteeing reliability and safety.

This ANM / MEGA fuse box is designed for demanding electrical installations requiring clean, robust and safe distribution of high currents.

It incorporates a large copper bar connecting all the power supplies on one side, providing :

• even current distribution
• reduced electrical losses
• excellent resistance to high currents

The M8 terminals accept large-section round copper lugs, ideal for professional installations.

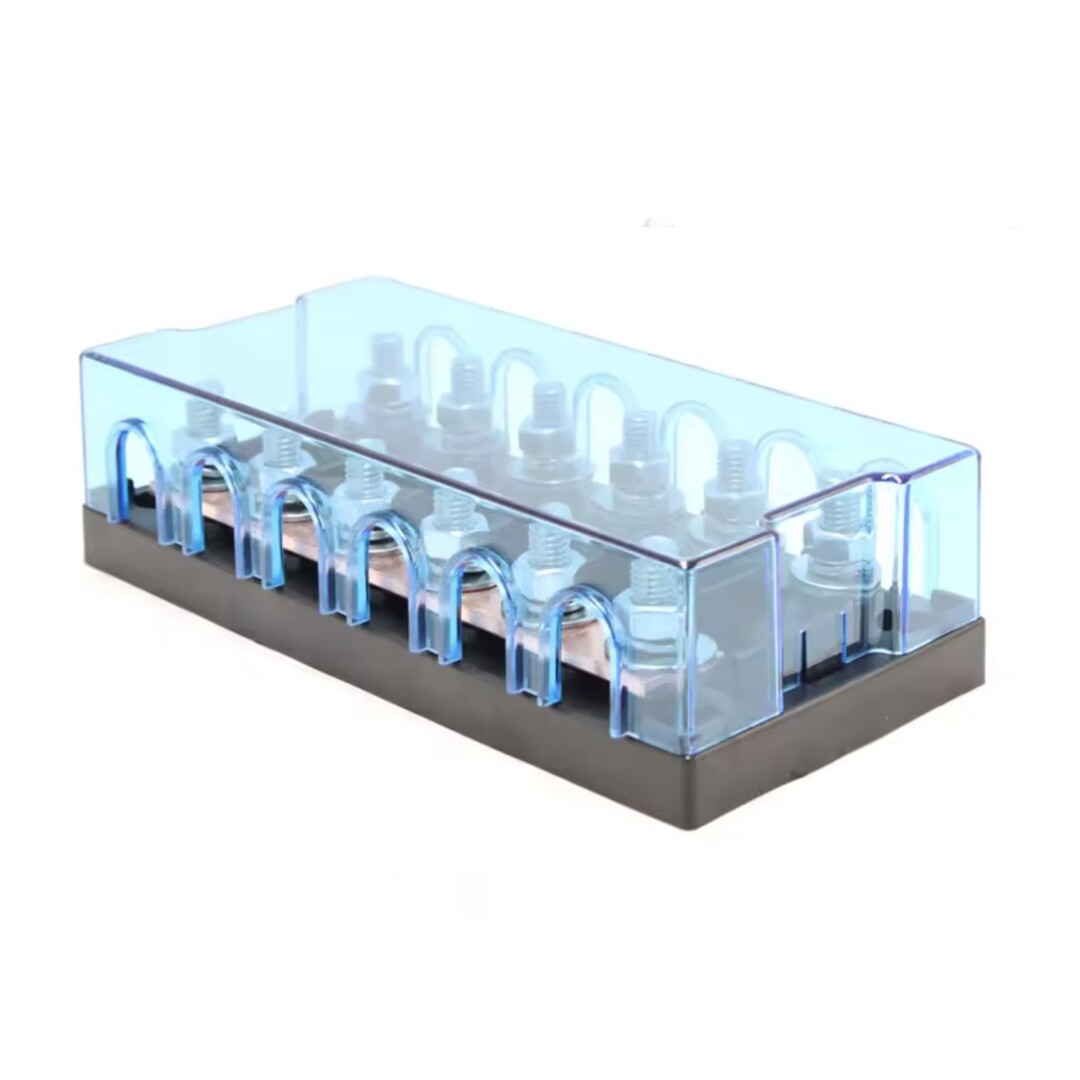

The transparent cover allows immediate visual inspection of fuse status without dismantling.

They are secured by 4 Ø6 mm holes in the corners of the box, ensuring solid mounting even in environments subject to vibration.

Widely used on :

• racing cars
• yachts & boats
• agricultural machinery
• industrial vehicles
• high-power electrical installations

---

📐 Technical specifications

• Type : ANM / MEGA fuse-holder
• Number of channels : 6 slots
• Operating voltage : 12V to 48V
• Current carrying capacity : up to 100 A per channel (depending on fuse)
• Fuses supplied: 6 × 50 A
• Terminals: M8 studs
• Internal busbar: Solid copper
• Tightness: IP54
• Temperature range: -50°C to +110°C
• Mounting: 4 holes Ø6 mm
• Cover: Transparent plastic

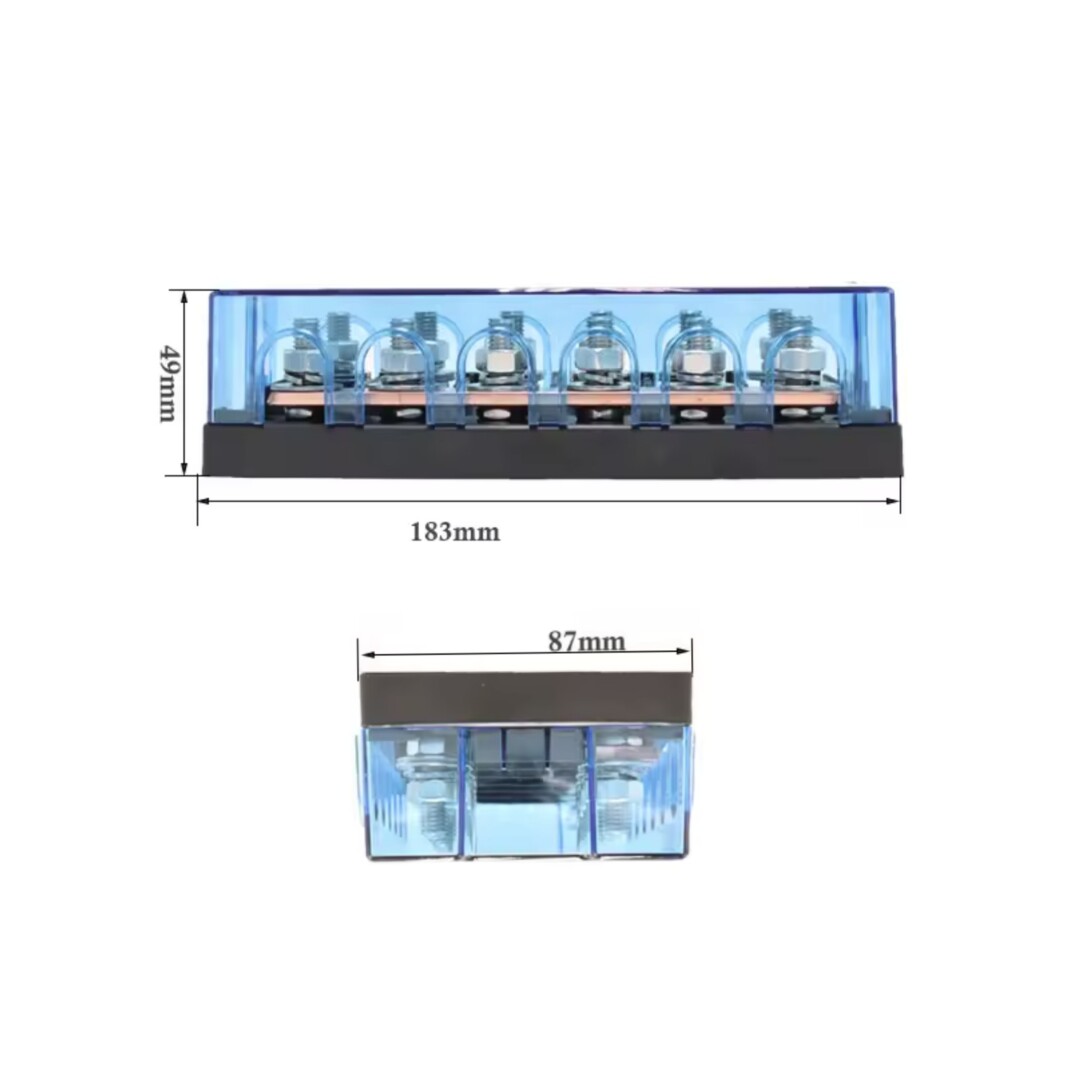

• Dimensions:

• Length: 185 mm
• Width: 90 mm
• Height : 50 mm

---

🧰 Applications

• High-power petrol pumps
• Electric fans
• High-power lighting / LED strips
• Electric heaters
• Starters
• Very powerful winches
• Competition vehicles
• Marine (yachts, boats)
• Agricultural & industrial machinery

---

🔧 Installation advice

• Use M8 round copper lugs (available from the Discount Autosport catalogue).
• Use minimum 2.5 mm² wire or battery cable depending on the amperage
• ANM / MEGA fuses available in retail from 30A to 500A
• Always match the fuse rating to the device being powered

---

✅ Product benefits

• ✅ Secure high-power electrical distribution
• ✅ Solid copper busbar
• ✅ 6 independent channels
• ✅ Heavy-duty M8 terminals
• ✅ Transparent cover (quick diagnosis)
• ✅ IP54 sealing
• ✅ Professional & durable installation
• ✅ Compatible with 30A to 500A fuses
