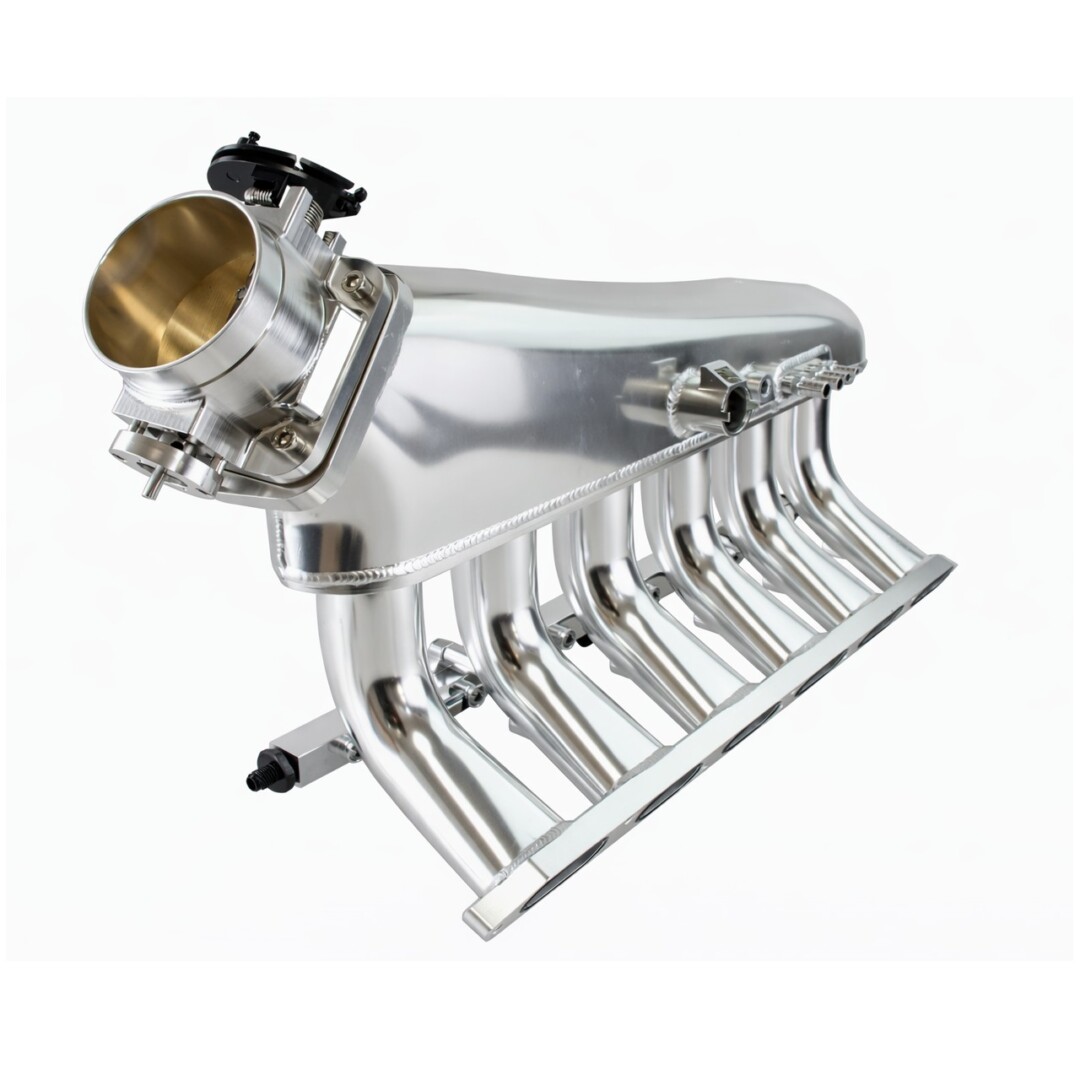

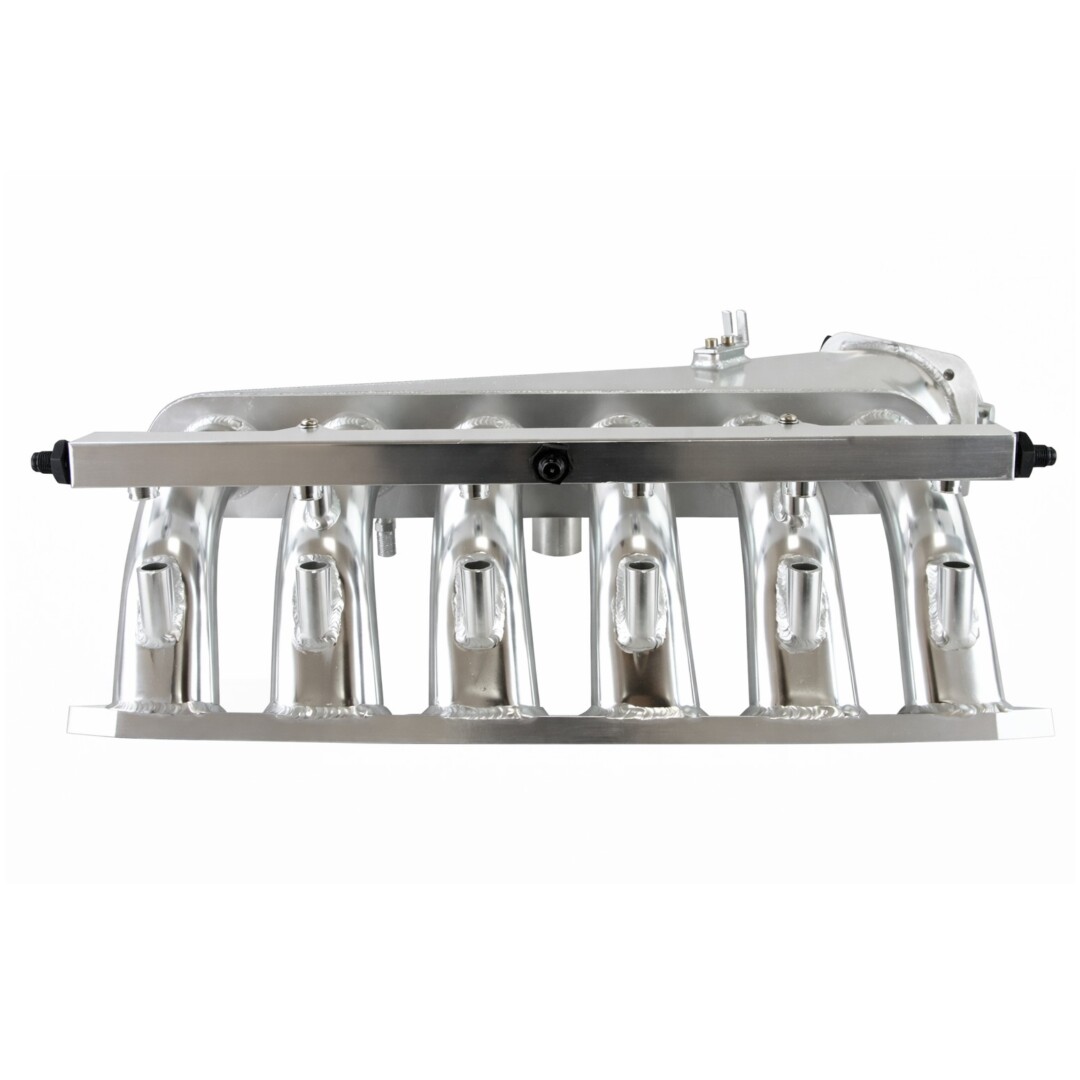

Complete aluminium intake manifold kit for BMW M50 / M52 Turbo

The ultimate solution for high-performance engine tuning.

Drastically improve the performance of your BMW engine with this aluminium intake manifold for M50 / M52 Turbo, designed for demanding engine tuning.
Made from TIG-welded aluminium, it withstands over 2.5 bar of boost pressure while offering improved throttle response and increased airflow.

The CNC-cut 90mm throttle valve ensures smooth opening and maximum air intake, essential for powerful turbocharged engines.

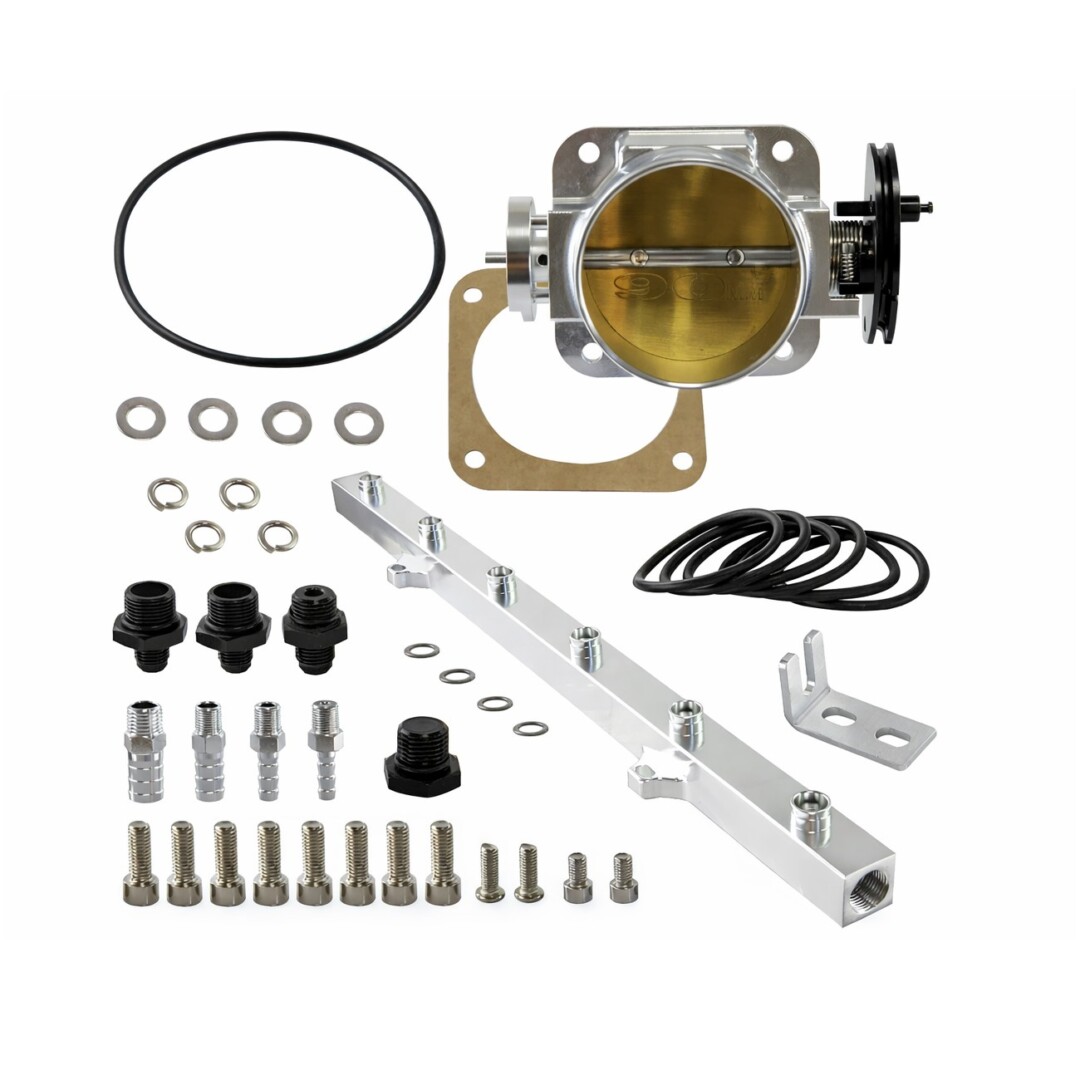

The kit also includes the Dash 6 injector manifold, gaskets, complete hardware and sensor tapping for a ready-to-use installation.

Designed to replace the original plastic manifold, which is often prone to cracking under high pressure, this TIG-welded aluminium model is capable of withstanding up to 2.5 bar of boost without deformation.
Its robust, lightweight construction (3 kg) offers excellent thermal and mechanical resistance.

The 90 mm 5-axis CNC-machined throttle valve ensures greater airflow and more responsive acceleration than the original 70 mm throttle valve.

The high-flow injector manifold supplied features Dash 6 connectors to ensure a constant flow of fuel, even in very high turbo configurations.

This manifold includes 4 1/8 NPT holes under the base, allowing the addition of pressure sensors, a regulator or a boost pressure gauge, as well as a dedicated connector for the original idle valve.

Its high-gloss aluminium finish adds a professional aesthetic touch to your engine bay, while ensuring perfect compatibility with BMW M50 and M52 blocks.

⚙️ Technical specifications :

• Compatibility: BMW M50 / M52 Turbo
• Material: TIG-welded aluminium
• Weight: 3 kg
• Maximum pressure: 2.5 bar
• Throttle valve: Ø90 mm CNC 5-axis aluminium
• Injector manifold: high flow, Dash 6 connectors
• Sensor ports: 4x 1/8 NPT (pressure sensor connections)
• Idle valve connection: original BMW
• Finish: bright aluminium
• Operating voltage: compatible with standard 12V power supply

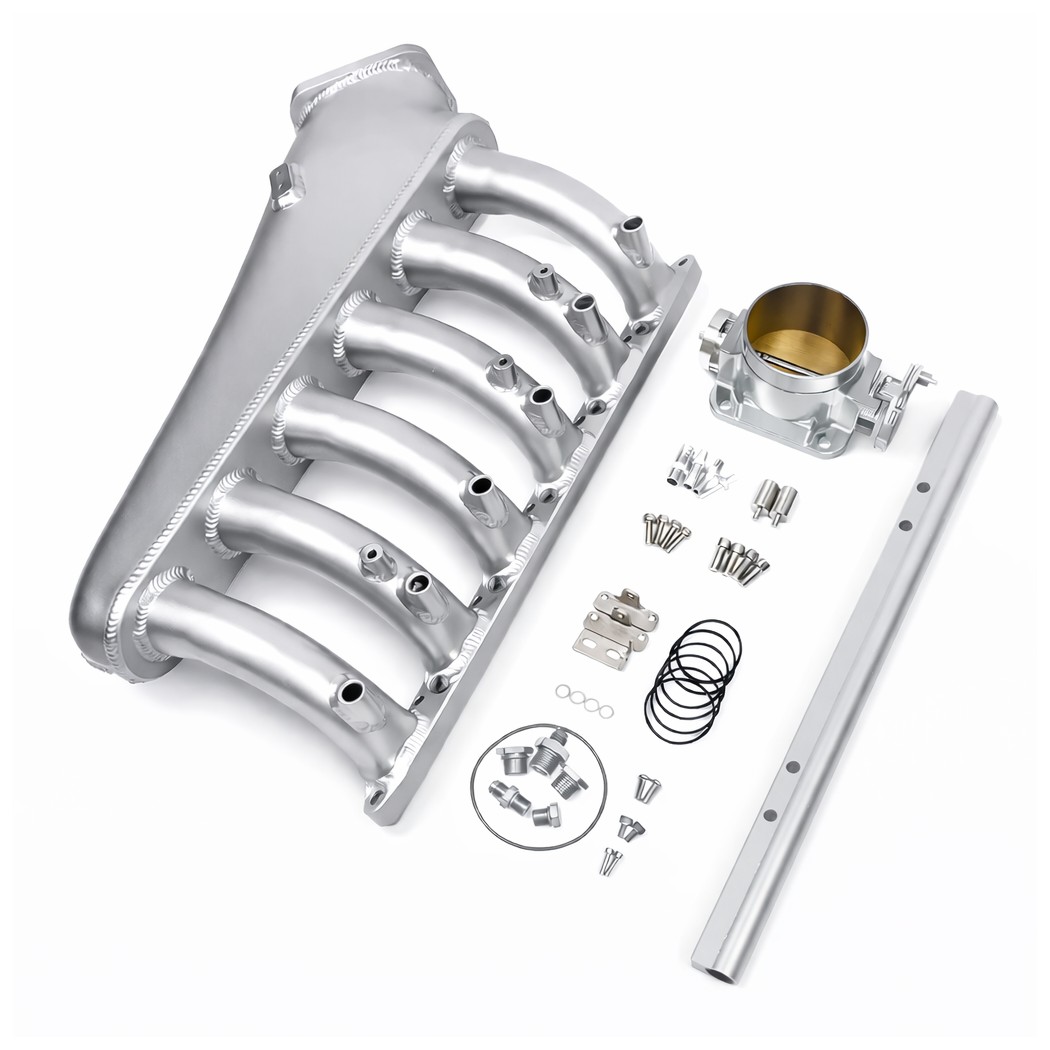

• Sold: as a complete kit (rail + throttle + seals + screws)

⚡ Applications:

• 🏎️ BMW M50 / M52 high performance turbo preparations.
• ⚙️ Engine swap and drift / circuit projects
• 🔧 Optimisation of air flow and engine efficiency

✅ Product benefits :

✅ TIG welded aluminium construction – resistance +2.5 bar
✅ Ø90 mm CNC intake butterfly – increased responsiveness
✅ Dash 6 high-flow injection rail included
✅ 4 ports 1/8 NPT for sensors / instrumentation
✅ Direct mounting on M50 / M52 – plug & play
✅ Good looks – gloss black finish
✅ So ld complete with seals and screws
