Commodo Moto 22mm 5 Buttons Multifunction – Universal Handlebar Switch – 12-60V 15A

Code: commodo-moto-5-boutons-ronds
Commodo Moto 22mm 5 Buttons Multifunction - Universal Handlebar Switch - 12-60V 15A
Commodo Moto 22mm 5 Buttons Multifunction - Universal Handlebar Switch - 12-60V 15A - Image 2
Commodo Moto 22mm 5 Buttons Multifunction - Universal Handlebar Switch - 12-60V 15A - Image 3
Commodo Moto 22mm 5 Buttons Multifunction - Universal Handlebar Switch - 12-60V 15A - Image 4
Commodo Moto 22mm 5 Buttons Multifunction - Universal Handlebar Switch - 12-60V 15A - Image 5
Commodo Moto 22mm 5 Buttons Multifunction - Universal Handlebar Switch - 12-60V 15A - Image 6

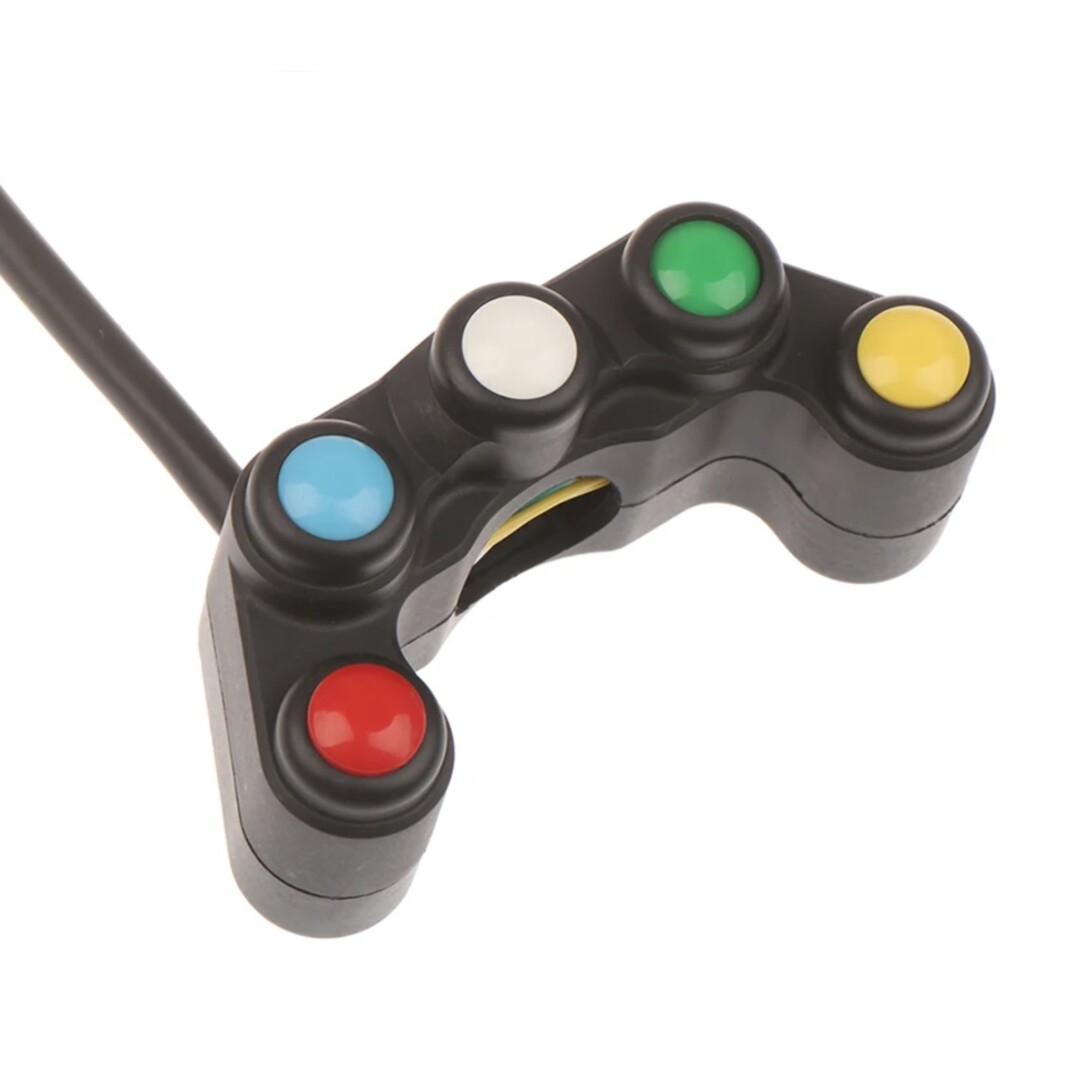

Universal 22mm motorbike handlebar switch

  • 🔘 5 round multifunction buttons
  • ⚡ Compatible voltage 12 to 60V
  • 🔧 Standard 7/8″ handlebar mounting
  • 📏 Electrical harness ~50 cm
  • 🟡 Momentary + lockable buttons
  • 🧱 Robust PA6 plastic body
  • 🔥 Rated current 15A
  • 💡 Max power 220W

  • 🛠️ Quick and easy installation

34,90€

Available on back-order

Available on back-order

Share (0)
Total: 0 Total: 0 Total: 0

22 mm universal handlebar unit with 5 round multifunction buttons, ideal for additional electrical controls on motorbikes.

Easy to install, robust and compatible with 12 to 60V, it can be used to manage lighting, accessories and custom functions.

This 5-button multifunction motorbike commodo is designed to offer a practical and reliable solution for adding or replacing electric controls on your handlebars.

✅ Universal handlebar mount 22 mm (7/8″)
Compatible with the majority of motorbikes, it easily attaches to standard handlebars without complex modification.

✅ 5 buttons with a variety of functions
Each button has a specific action:

  • 🔴 Red button: momentary / normally open

  • 🟡 Yellow button: momentary / normally open

  • 🔵 Blue button: lock (held ON/OFF)

  • ⚪ White button: lock (held ON/OFF)

  • 🟢 Green button: lock (held ON/OFF)

👉 Controls lights, horn, fans, electrical accessories, etc.

✅ Wide electrical compatibility
Works with input voltage from 12 to 60 volts, perfect for motorbikes, quads, custom projects and light electric vehicles.

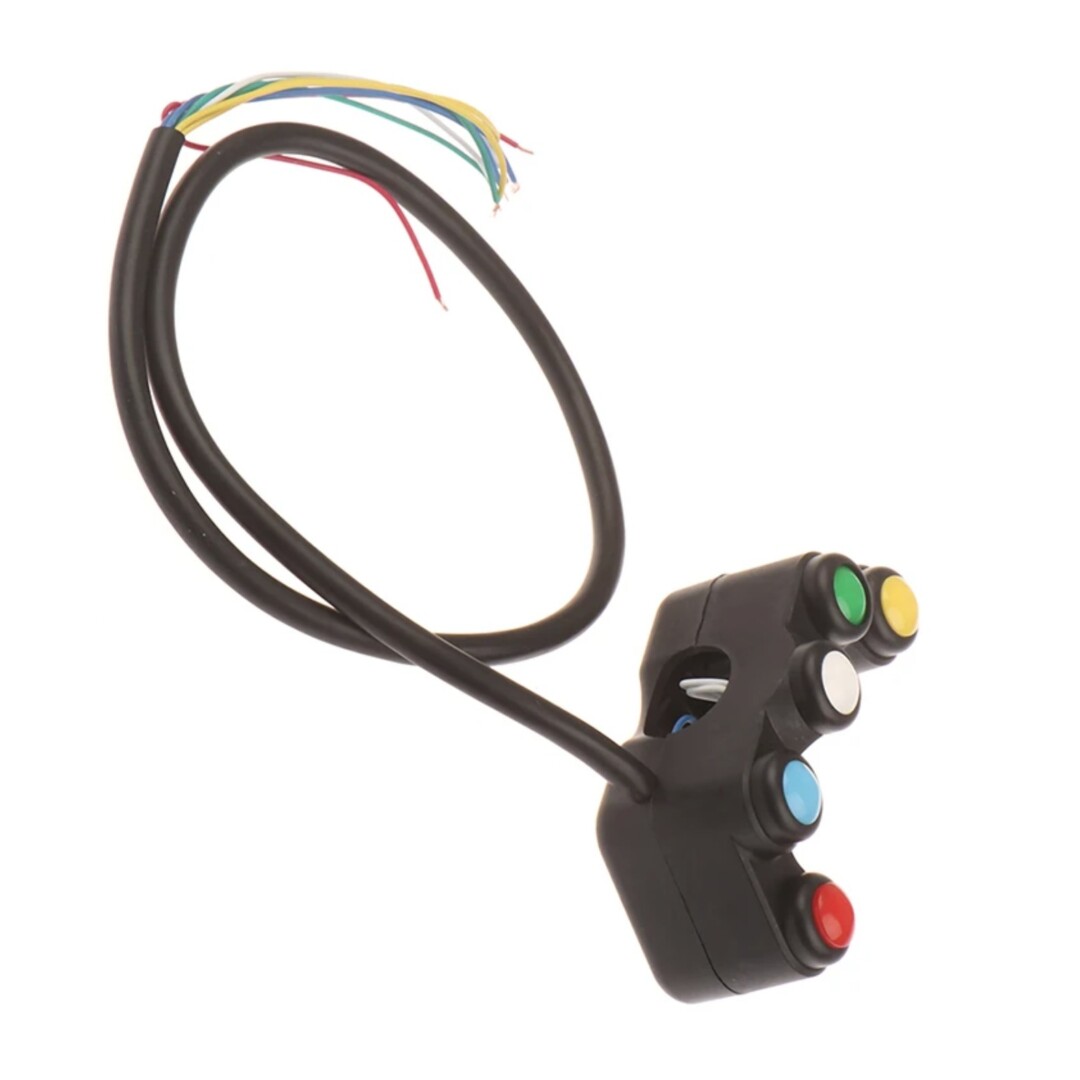

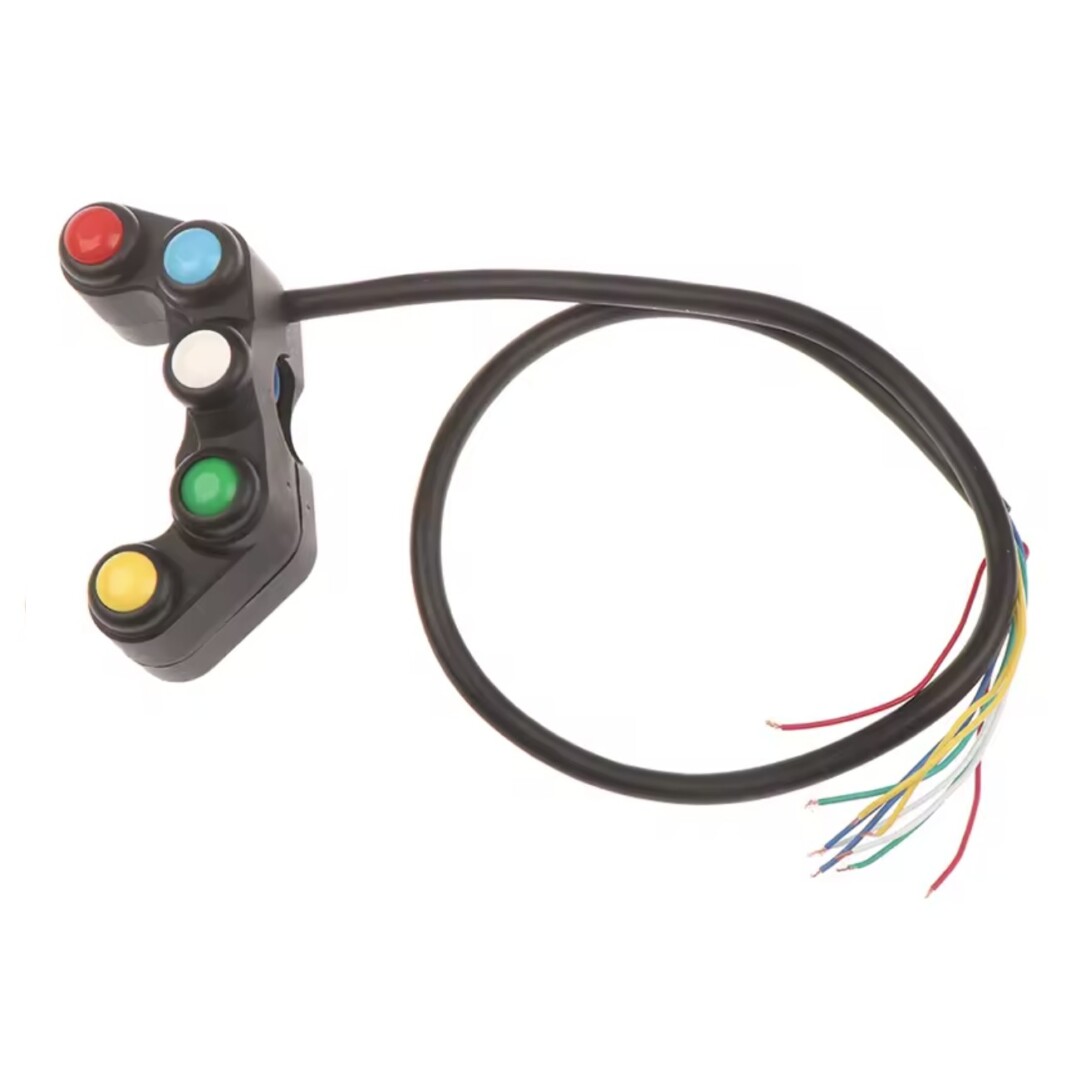

✅ Long harness for clean installation
Supplied with a harness approximately 50 cm long, making it easy to run cables and make connections.

✅ Robust construction
Made from high-strength PA6 plastic, designed to withstand vibration and daily use.

⚙️ Technical specifications

  • Model name: 5-button motorbike commodo
  • Mounting: 7/8″ (22 mm) handlebars
  • Material: robust PA6 plastic
  • Housing colour: black
  • Button colour: red / yellow / blue / green / white
  • Input voltage: 12 to 60V
  • Rated current: 15A
  • Maximum power: 220W
  • Beam length: approx. 50-52 cm
  • Product dimensions: 9.3 x 3.9 x 3.8 cm
  • Handlebar collar diameter: 22 mm

🧰 Applications

  • Motorbike accessory controls
  • Additional lighting
  • Custom / café racer projects
  • Quad / buggy (depending on voltage)
  • Universal switch replacement

🔧 Autosport Discount Tips

  • Identify each button before connection
  • Respect max power and amperage
  • Protect connections with thermo-sleeve
  • Securely fix the harness along the handlebars
  • Test each function before riding

✅ Product benefits

✅ 5 multifunction buttons in a single commodo
✅ Universal 22mm handlebar mounting
✅ 12 to 60V compatible
✅ Long wiring harness for clean installation
✅ Versatile momentary and lockable buttons
✅ Robust PA6 material
✅ Supports up to 15A
✅ Perfect for custom projects and accessories

Weight 1 kg
