Aluminium intake manifold for V8 LS3 / L92

  • 🔧 92 mm billet aluminium butterfly included
  • 🧰 Supplied with 2 injection bars + crossover line
  • 🏁 Designed for high performance engine preparation
  • 💊 Supports up to 2 bars of pressure (30 psi)
  • ðŸŠķ Made from 3 mm thick T6061 aluminium
  • ðŸ“Ķ Complete kit ready to install

  • 🔌 Throttle sensor + idle valve supplied

₮579,90

1 in stock

1 in stock

🚚

Delivery expected on Wednesday 11 March

If you order in the next 50 h and 44 min.

Share (0)
Total: 0 Total: 0 Total: 0

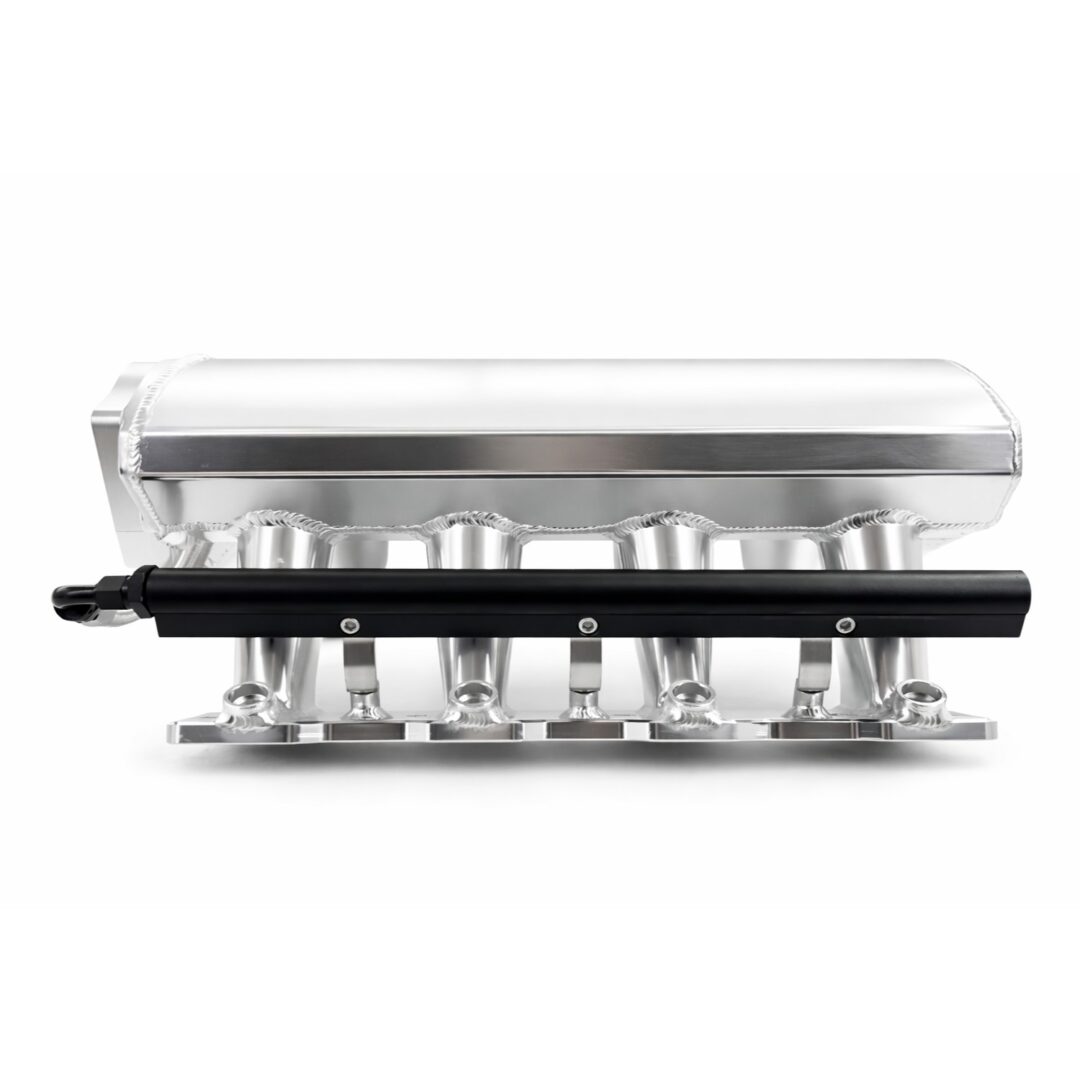

This aluminium intake manifold is designed for GM V8 LS3 and L92 engines with rectangular cylinder head ducts, also known as “Rectangular ports”.

Made from 3 mm thick T6061 aluminium, this manifold is designed for high-performance engine preparations, particularly for :

  • turbo
  • compressor
  • high-power naturally-aspirated engines
  • drift / drag / circuit

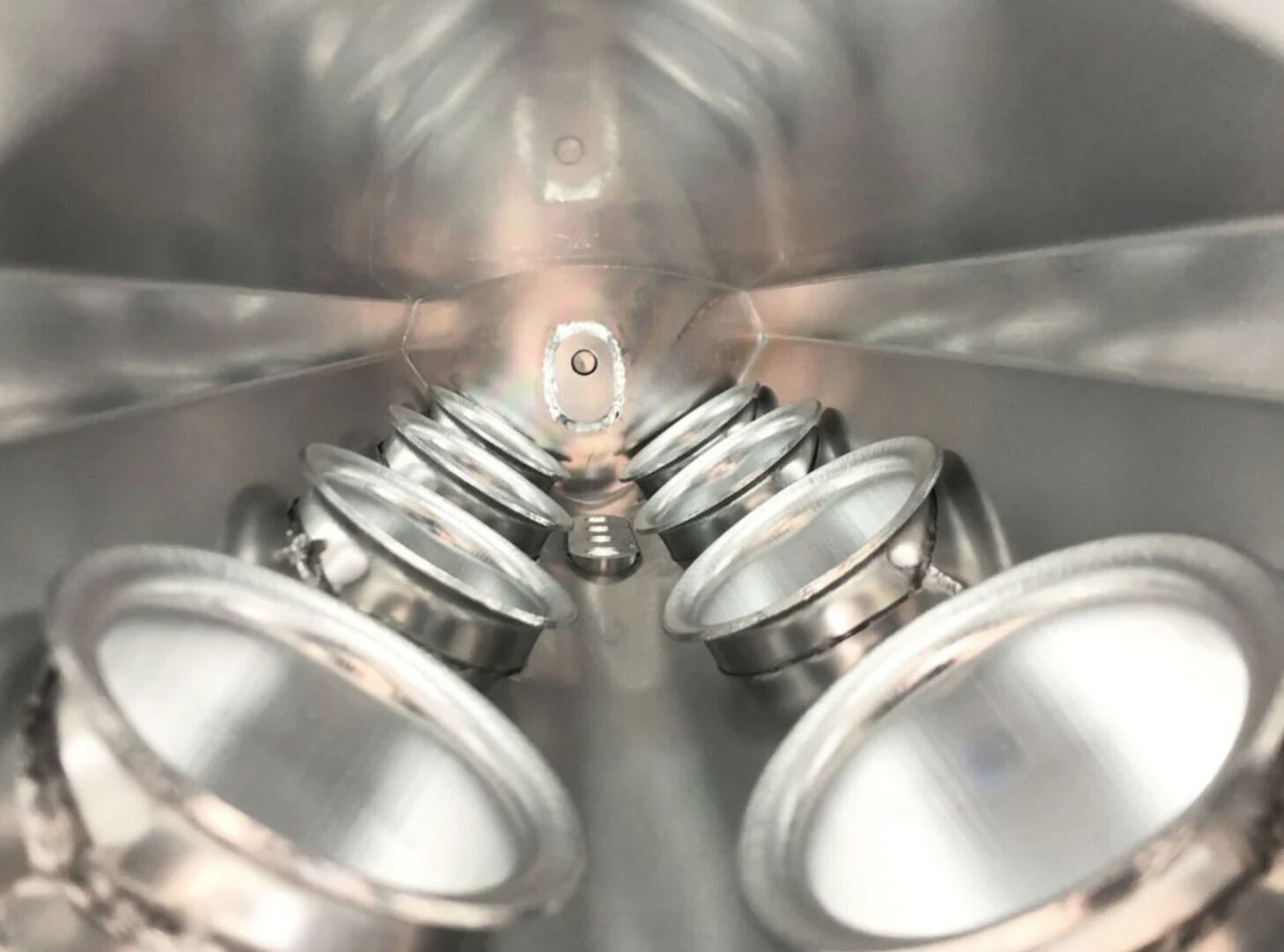

The TIG-welded sheet metal design produces a robust, lightweight manifold capable of withstanding high boost pressures.

The manifold is supplied with a 92 mm billet aluminium throttle valve, providing a high airflow suitable for highly tuned engines.

CNC-machined cylinder head flanges ensure excellent assembly precision and optimum sealing.

Common uses

This intake manifold is used for :

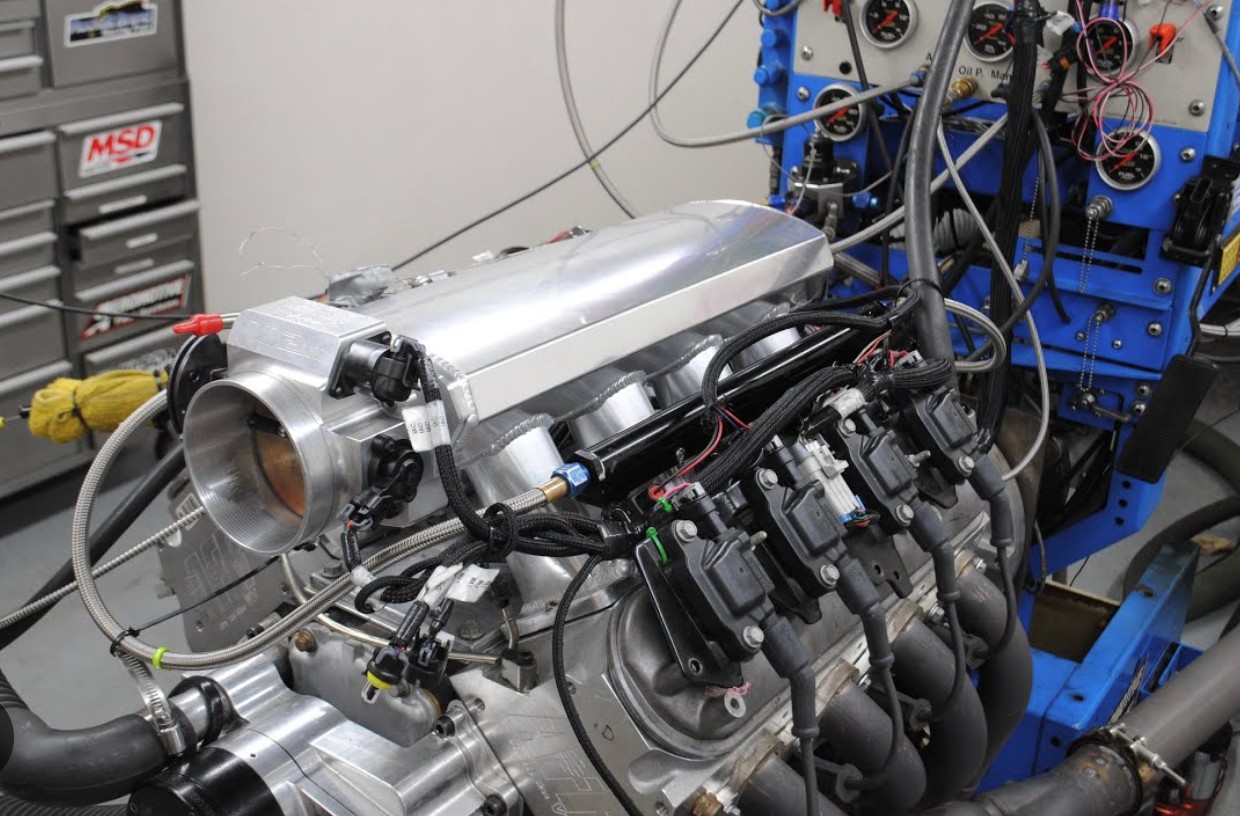

  • high performance LS3 preparations
  • modified L92 engines
  • turbo projects
  • compressor installations
  • drag racing engines
  • drift or circuit projects

Compatibility

Compatible with :

  • GM LS3 engines
  • GM L92 engines
  • rectangular port cylinder heads
  • 14 mm injectors
  • aftermarket engine management systems

Installation

Recommended installation :

1ïļâƒĢ Install manifold gaskets on cylinder heads
2ïļâƒĢ Position the intake manifold
3ïļâƒĢ Fit fuel rails and fuel line
4ïļâƒĢ Install the 92 mm throttle valve
5ïļâƒĢ Connect vacuum hoses and sensors

Technical specifications

  • 🔧 Type: Aluminium intake manifold
  • ðŸ§ą Material : Aluminium T6061
  • 📏 Material thickness: 3 mm
  • ⚙ïļ Throttle: 92 mm billet aluminium
  • 🔌 Butterfly sensor: supplied
  • 🔧 Idle valve: supplied
  • 📏 Manifold height: 23 cm
  • 📏 Overall length: 50cm
  • ðŸ”Đ Vacuum ports: 3 x 1/8 + 1 x M10
  • 🔧 Compatible injectors: 14 mm
  • 💊 Maximum pressure: 2 bar / 30 psi
  • 🛠ïļ Manufacture: CNC machined flanges
  • ðŸ”Đ Assembly: TIG welding
  • ðŸŽĻ Finish: polished aluminium

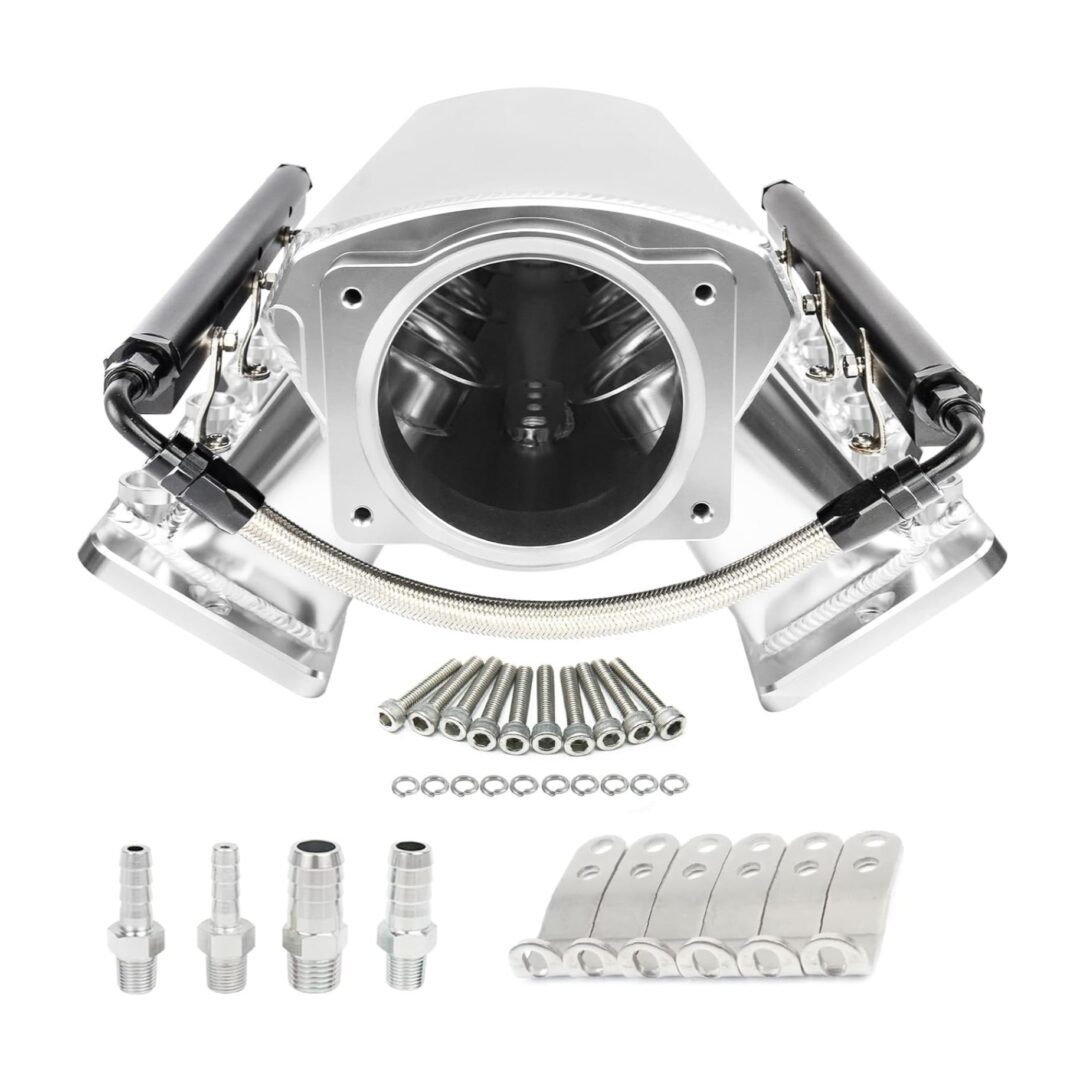

Kit contents

The kit includes :

  • intake manifold
  • 92 mm aluminium billet throttle
  • throttle sensor (TPS)
  • idle valve
  • 2 injection rails
  • crossover fuel line
  • seals
  • mounting hardware

ðŸ’Ą Conseil Discount Autosport

To get the most out of this type of manifold, we recommend using :

  • programmable engine management
  • injectors adapted to the required flow rate
  • a high-capacity fuel system

This type of manifold is ideal for prepared LS engines that greatly exceed their original power.

Product benefits

✅ High performance manifold for LS3 / L92 motors
✅ 92mm throttle included
✅ Throttle sensor and idle valve included
✅ T6061 aluminium construction , 3 mm thick
✅ High quality TIG welding
✅ Precision CNC machined flanges
✅ Compatible with 14 mm injectors
✅ Supports up to 2 bar pressure
✅ Complete kit ready to install

Weight 10 kg
