ITT 9-way round bulkhead connector – quarter-turn locking – IP54 – 12/48V – complete kit

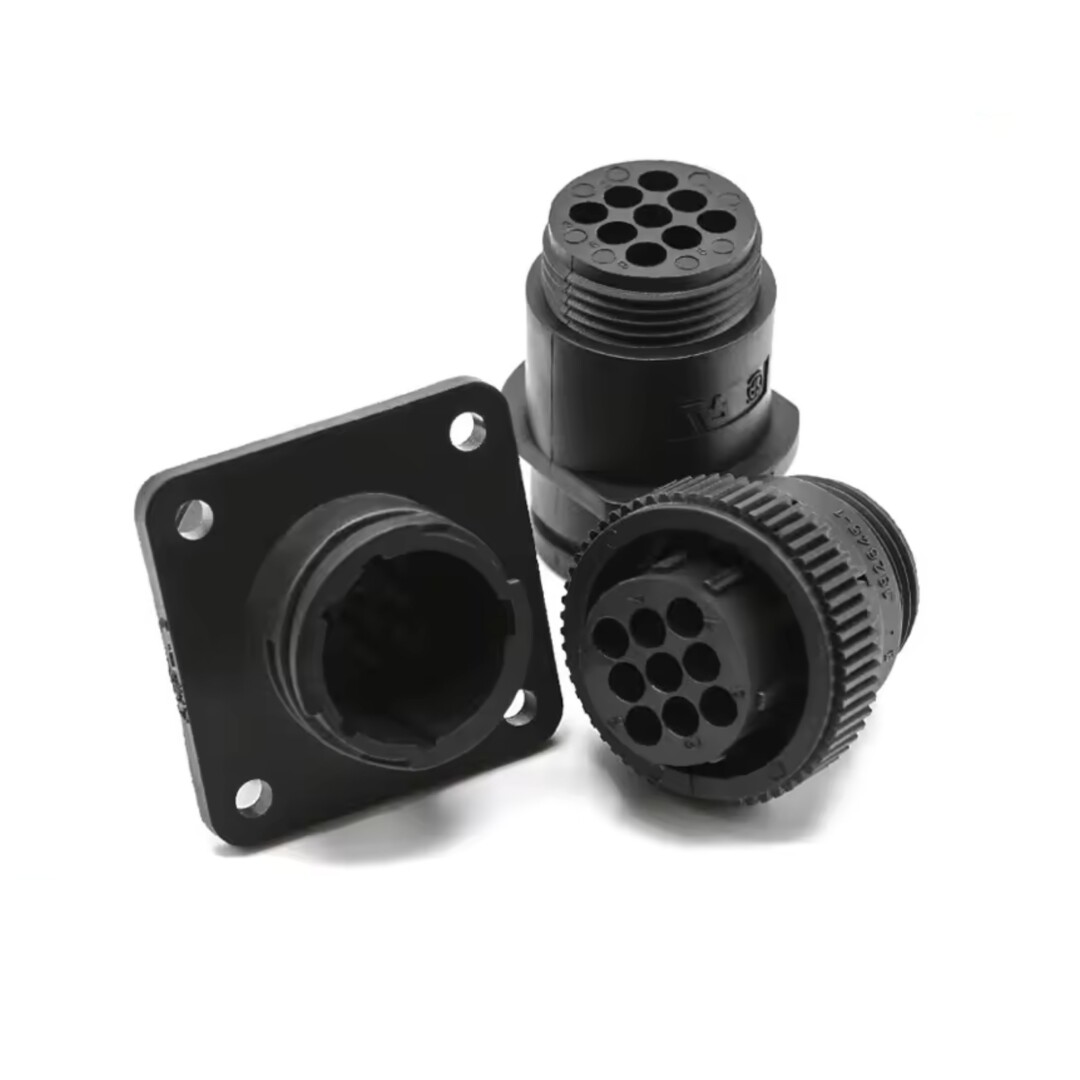

9-way round ITT bulkhead connector
Designed to pass a complete harness through a bulkhead cleanly, reliably and securely.
Thanks to its quarter-turn lock and robust construction, it provides a stable connection for weak signals and power lines up to 15A.
IP54-rated, ideal for motor compartments and applications requiring protection against dust and splashing water.
This 9-way ITT round connector is the professional solution for your harnesses requiring a clean, durable and removable bulkhead.
It can carry :
-
sensor signals (1 to 2A),
-
power lines (up to 15A per channel),
in a single compact, robust connector.
Its quarter-turn locking system guarantees a perfect hold even in vibrating environments: competition, off-road, agricultural or industrial machinery.
Equipped with a cable gland, it ensures effective retention of the harness, prevents pulling out and offers a professional finish.
⚙️ Technical specifications :
- Number of channels: 9
- Type: round bulkhead connector
- Locking system: quarter-turn (male + female)
- Protection rating: IP54
- Rated voltage: 12 V
- Maximum voltage: 48 V
- Maximum current: 15 A per channel
- Temperature range: -50°C to +140°C
- Housing material: PA66 + aluminium
- Contact material: silver-plated pure copper
- Mounting: bulkhead with cable gland included

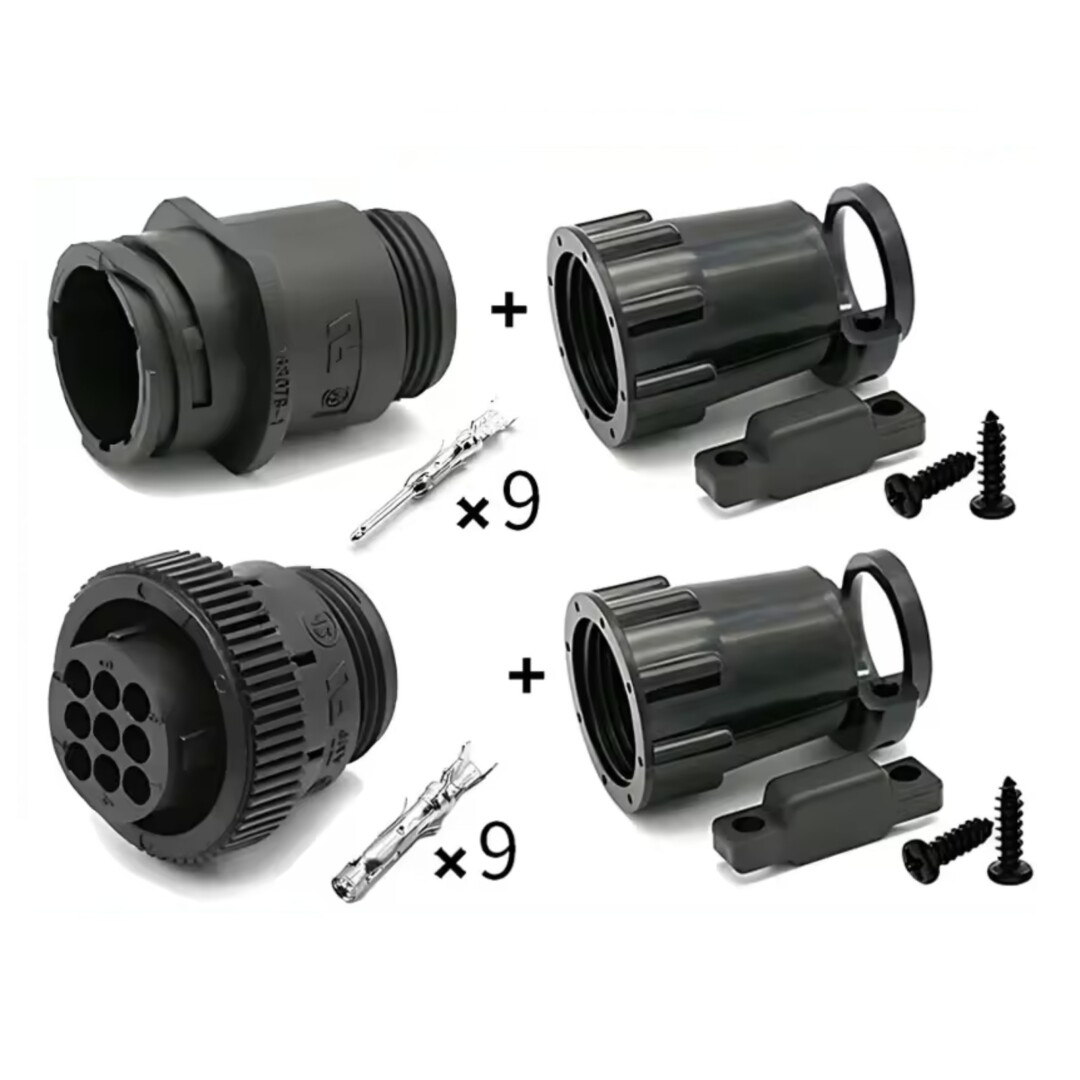

- Sold: complete kit (male + female + pins + seals + cable gland + cover)
⚡ Applications :
- 🏎️ Motor harnesses (ECU, sensors, coils)
- 🚜 Agricultural & industrial machinery
- 🔧 On-board equipment and special vehicles
- 🛥️ Protected nautical installations
- 🎯 Clean and professional bulkhead passage
- 💡 Harnesses requiring rapid dismantling
Product benefits:
✅ Quarter-turn locking: quick and secure
✅ 9 channels for signals + power
✅ IP54: dust + splash water resistant
✅ Silver-plated copper contacts → excellent conductivity
✅ Resistant from -50°C to +140°C
✅ Complete kit ready for installation
✅ Professional quality Discount Autosport
| Weight | 0,6 kg |
|---|
