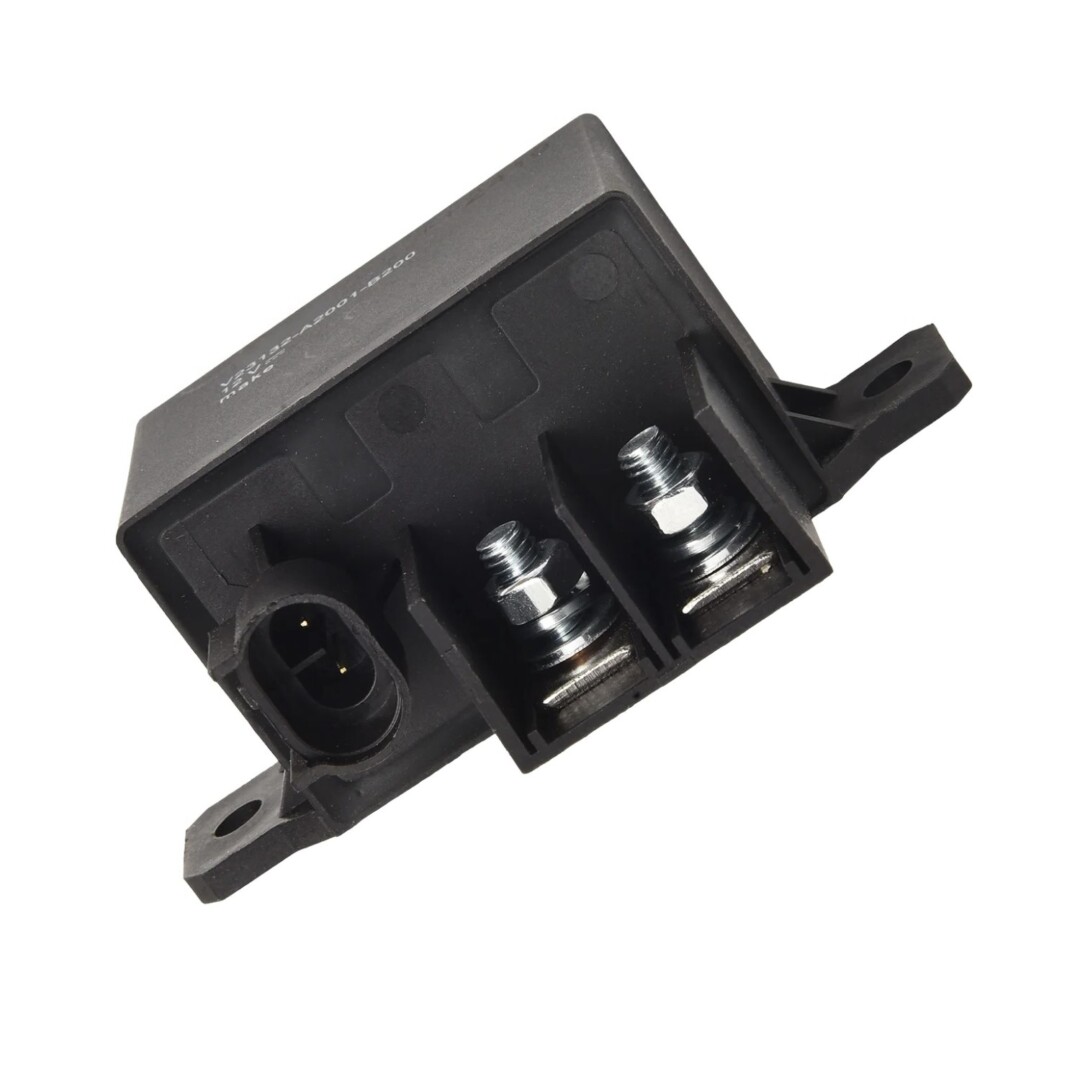

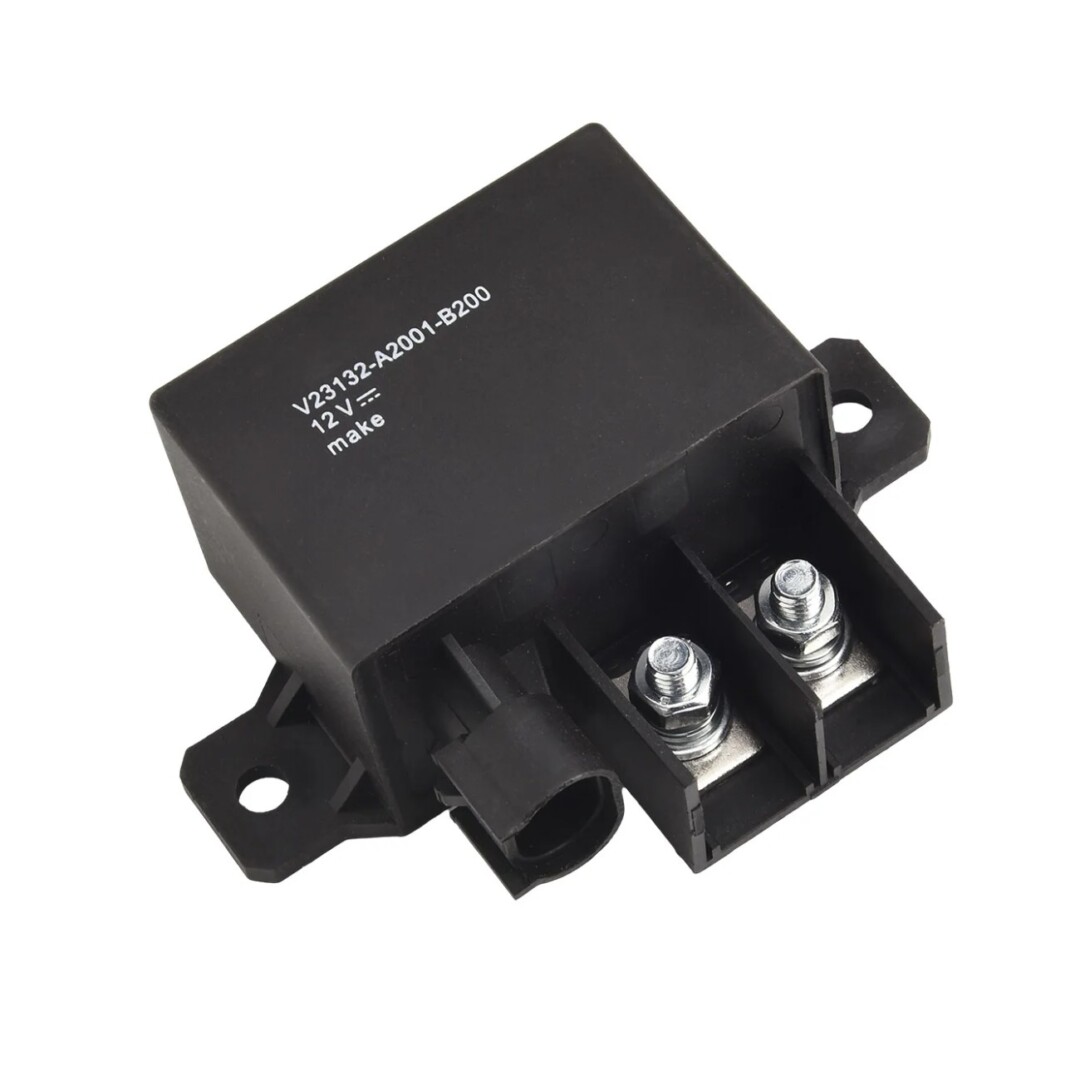

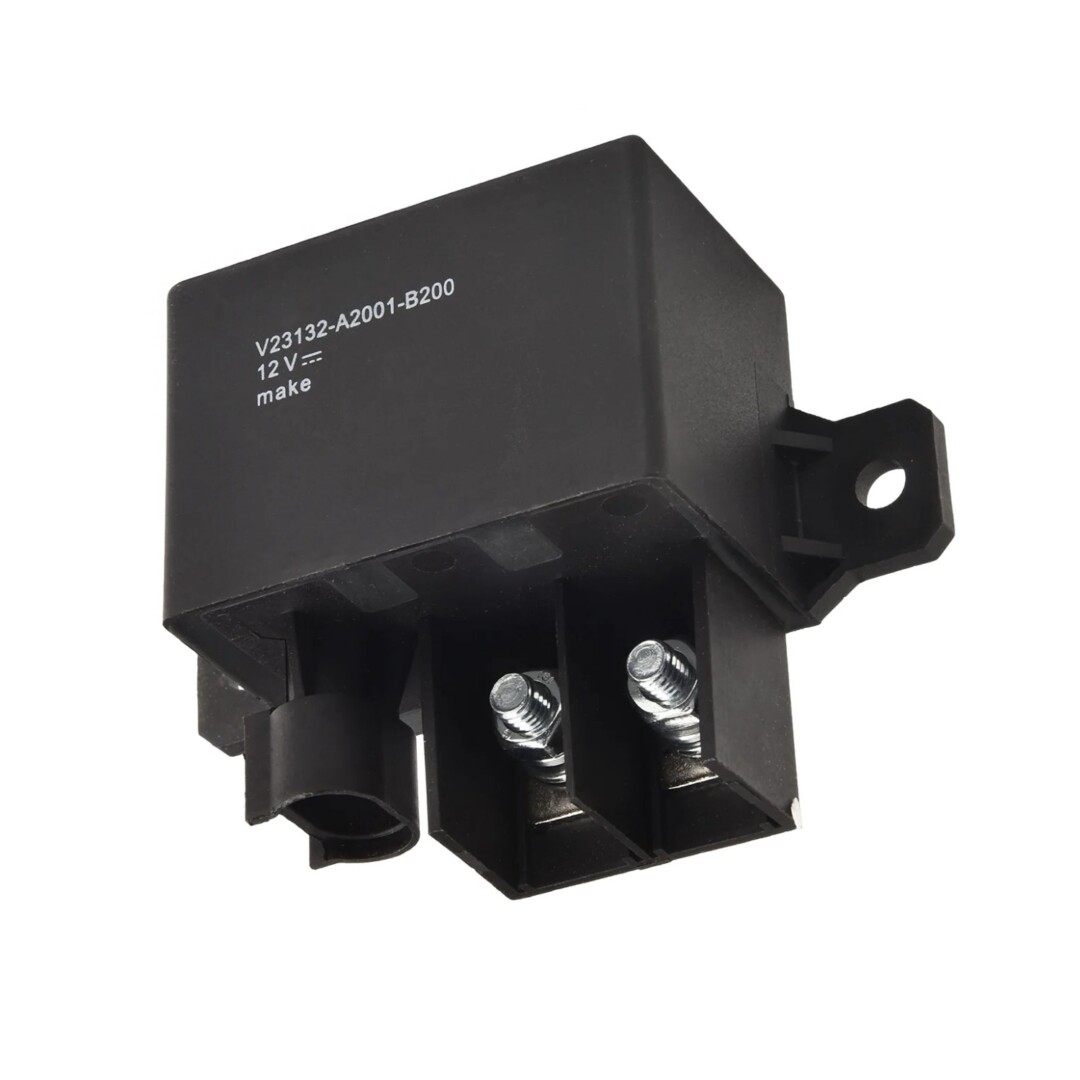

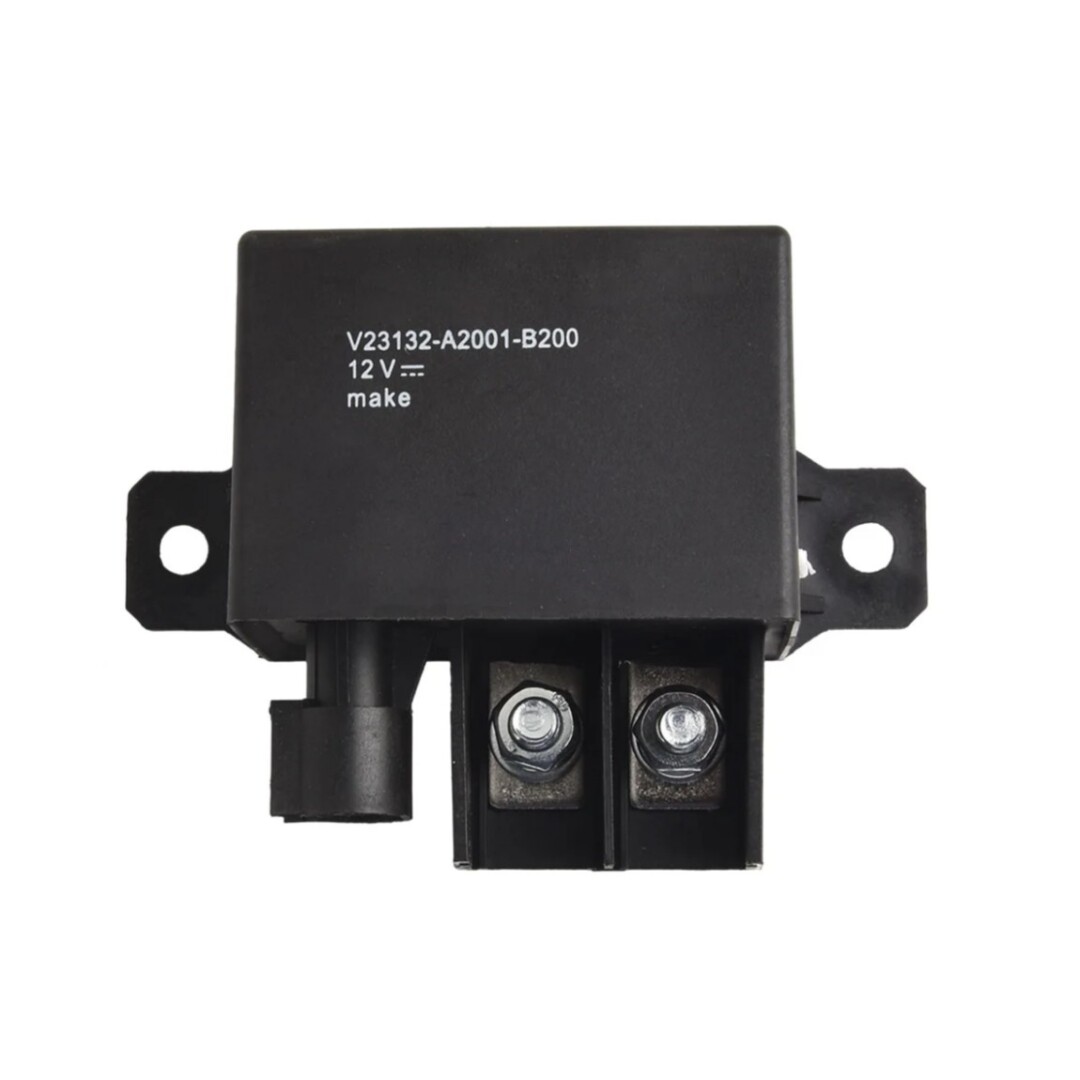

TYCO ELECTRONICS high-power 200-amp electrical relay, part number V23132-A2001-A200

Designed for circuits requiring high currents: starters, large fans, electric pumps, high-power audio systems, etc.

Perfect for trucks, agricultural machinery and automotive installations requiring a reliable relay.

This TYCO ELECTRONICS high-power relay is designed for vehicles and installations where conventional relays are insufficient.

✅ Designed for high current applications:

• HGV / agricultural machinery starters
• electric power steering pumps (Opel, Renault, etc.)
• high-power fans
• audio tuning systems (amplifiers)
• any power-hungry appliance requiring reliable disconnection

The power terminals are designed to accept round screw terminals, guaranteeing a solid, durable connection even under load.
Control is via a 2-way AMP Superseal connector, ideal for clean, waterproof and reliable installation.

📌 For a secure installation, we strongly recommend the use of high-power ANL screw-in fuses.

⚙️ Technical specifications

• Brand : TYCO ELECTRONICS
• Reference : V23132-A2001-A200
• Type : High power electrical relay
• Maximum current: 200 amps
• Acceptable power : 1800 watts
• Operating voltage : 9V to 16V
• Power terminals: M6
• Control connector : AMP Superseal 2 ways
• Control terminals: 6mm female connector compatible
• Operating temperature : -30°C to +110°C
• Applications: automotive / agricultural / industrial / HGV

🧰 Applications

• Starter relay
• Starting agricultural machinery
• Large fan power supply circuit
• High-flow electric pumps
• Electric DA pump (swap / retrofit)
• Audio tuning systems
• Competition / prototype vehicles

🔧 Autosport Discount Tips

• Use battery cable with a suitable cross-section
• Crimp with quality copper lugs (and protect with thermo sheath)
• Install an ANL fuse close to the power source
• Mount the relay on a rigid support (vibration)
• Always protect connections against moisture / splashes

✅ Product benefits

• ✅ High power relay 200A
• ✅ TYCO ELECTRONICS brand (industrial quality)
• ✅ Exact part number: V23132-A2001-A200
• ✅ Robust M6 terminals for round cable lugs
• ✅ Reliable control via 2-channel AMP Superseal
• ✅ Wide temperature range (-30 to +110°C)
• ✅ Ideal for HGVs / agriculture / competition
• ✅ Easy to secure with ANL fuses
