The most effective process known to date for thermally insulating exhausts and areas exposed to high heat.

---

Discount Autosport’s ultra-high-temperature thermal protection is the most effective method known to date for insulating exhausts and other areas highly exposed to heat.

The kit consists of two complementary layers:

1️⃣ A self-adhesive ceramic sheet (1 mm), to be stuck directly onto the exhaust, which forms the main thermal insulation.
2️⃣ A sheet of embossed stainless steel (0.12 mm), which wraps around the ceramic to create a hermetic, robust and durable thermal insulation.

This system retains a maximum amount of heat inside the exhaust, improving engine efficiency (hotter manifold = higher gas velocity), while effectively protecting the engine compartment, floor and surrounding sensitive components.

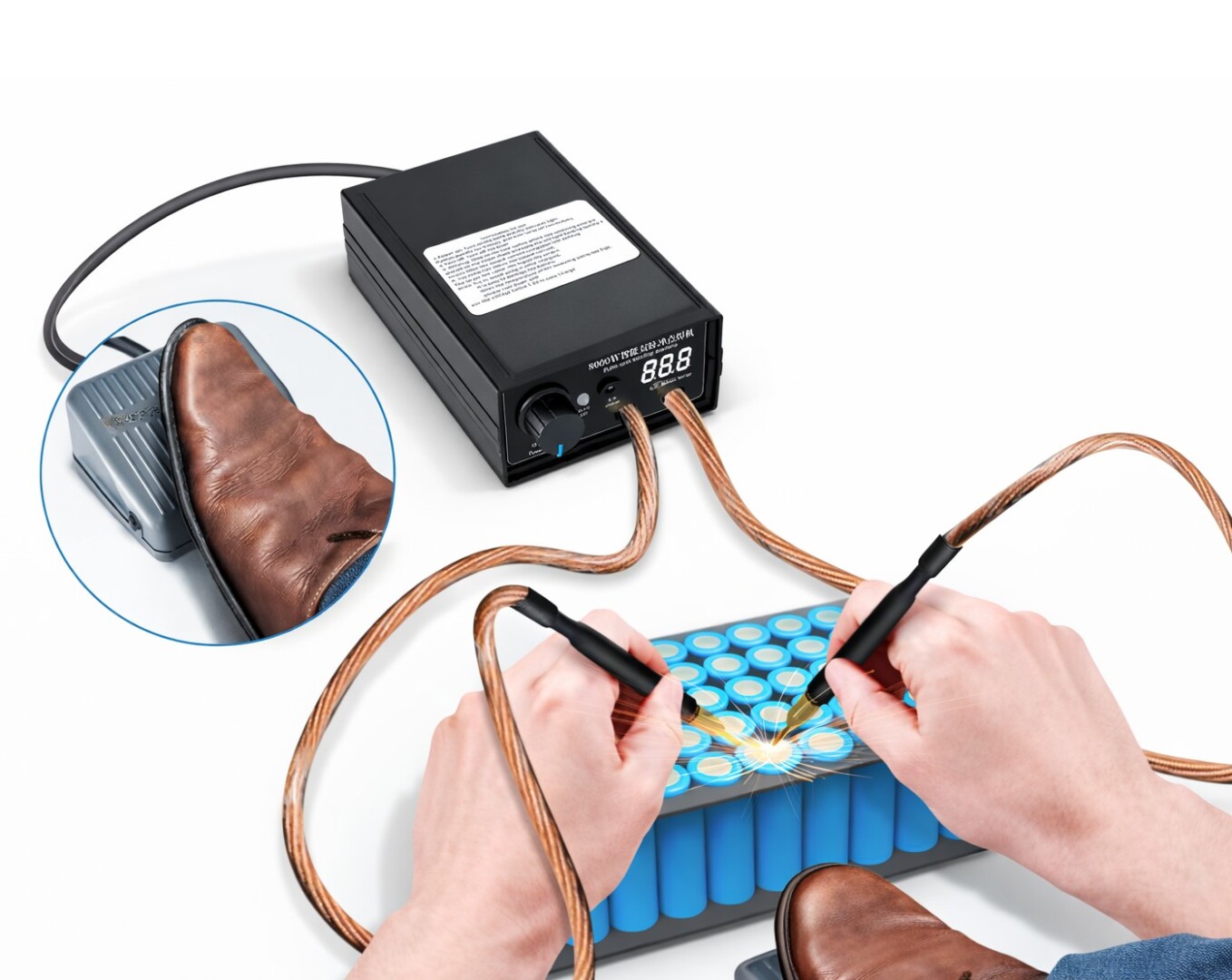

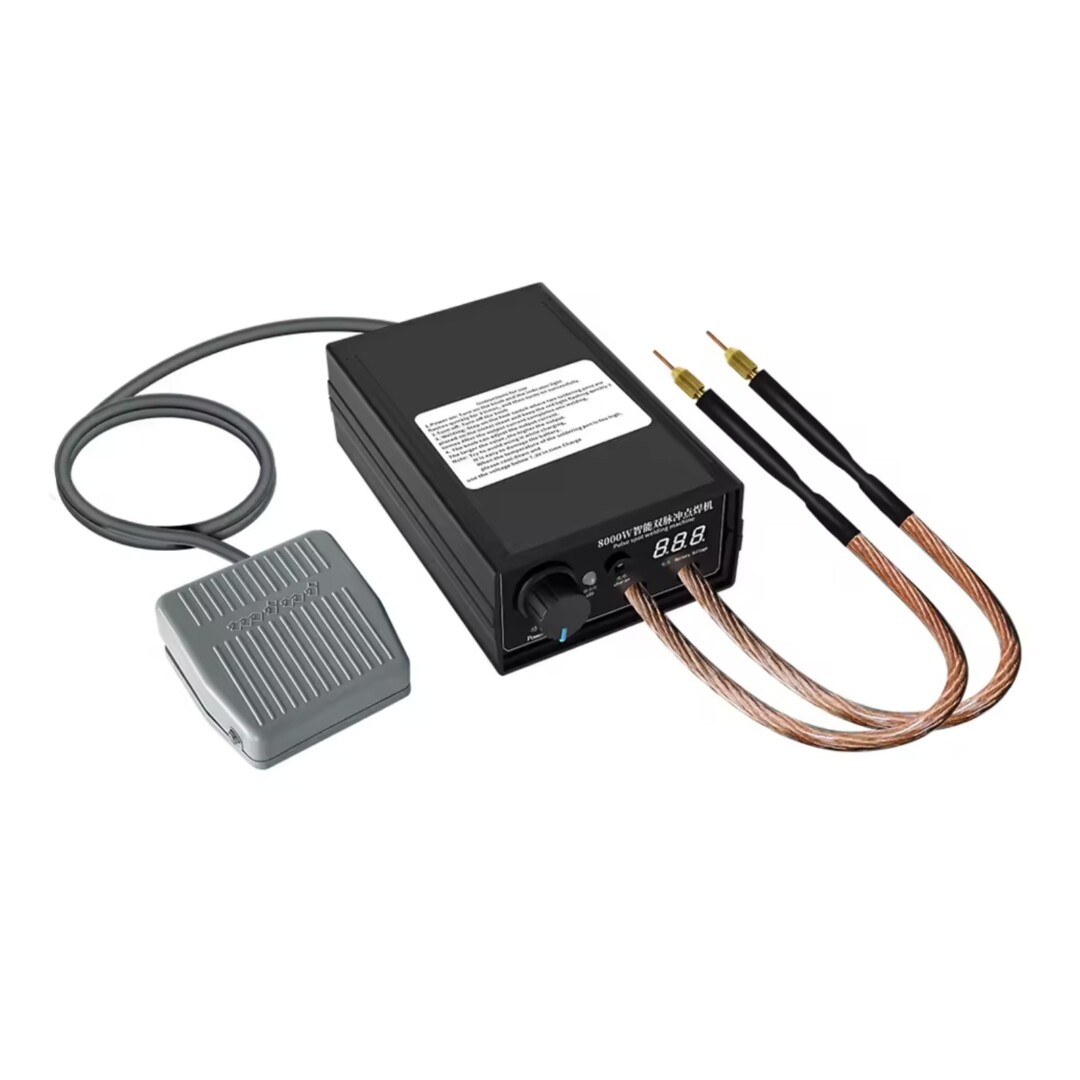

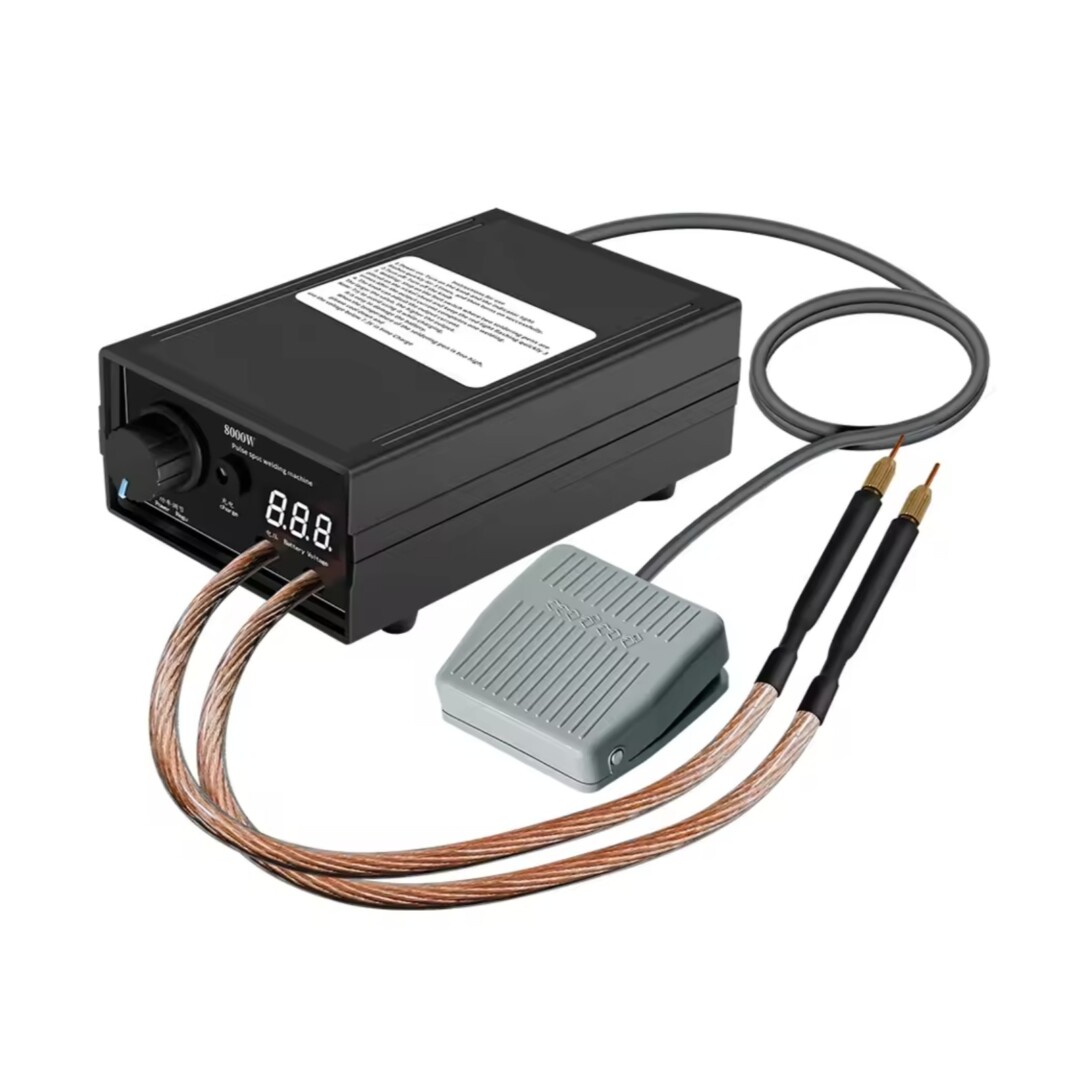

To be welded using our portable spot welder.

➡️ This principle is already used on original equipment vehicles: with this type of protection, you can lay your hand on a running engine exhaust without getting burned, proof of its exceptional effectiveness.

Developed, tested and validated in real-life conditions on our BMW E36 M50 Turbo 550 HP demonstration vehicle, this product is exclusive to Discount Autosport, offered at an ultra-competitive price despite its ultra-high level of performance.

---

⚙️ Technical specifications

• 🔥 Maximum temperature supported: 1500°C

• 🧱 S elf-adhesive ceramic:
• Thickness: 1 mm
• Direct application on the exhaust
• 🛡️ Embossed stainless steel:
• Thickness: 0.12 mm
• Role: mechanical protection & thermal containment
• 📐 Kit dimensions:
• 1 ceramic sheet 1 m × 60 cm
• 1 stainless steel sheet 1 m × 60 cm

• ⚖️ Total weight of kit: approx. 250 g/m².

• 🧪 Resistances:
• Oils & fuels
• Water
• Chemical products
• Extreme vibrations (Motorsport use)

---

🚗 Applications

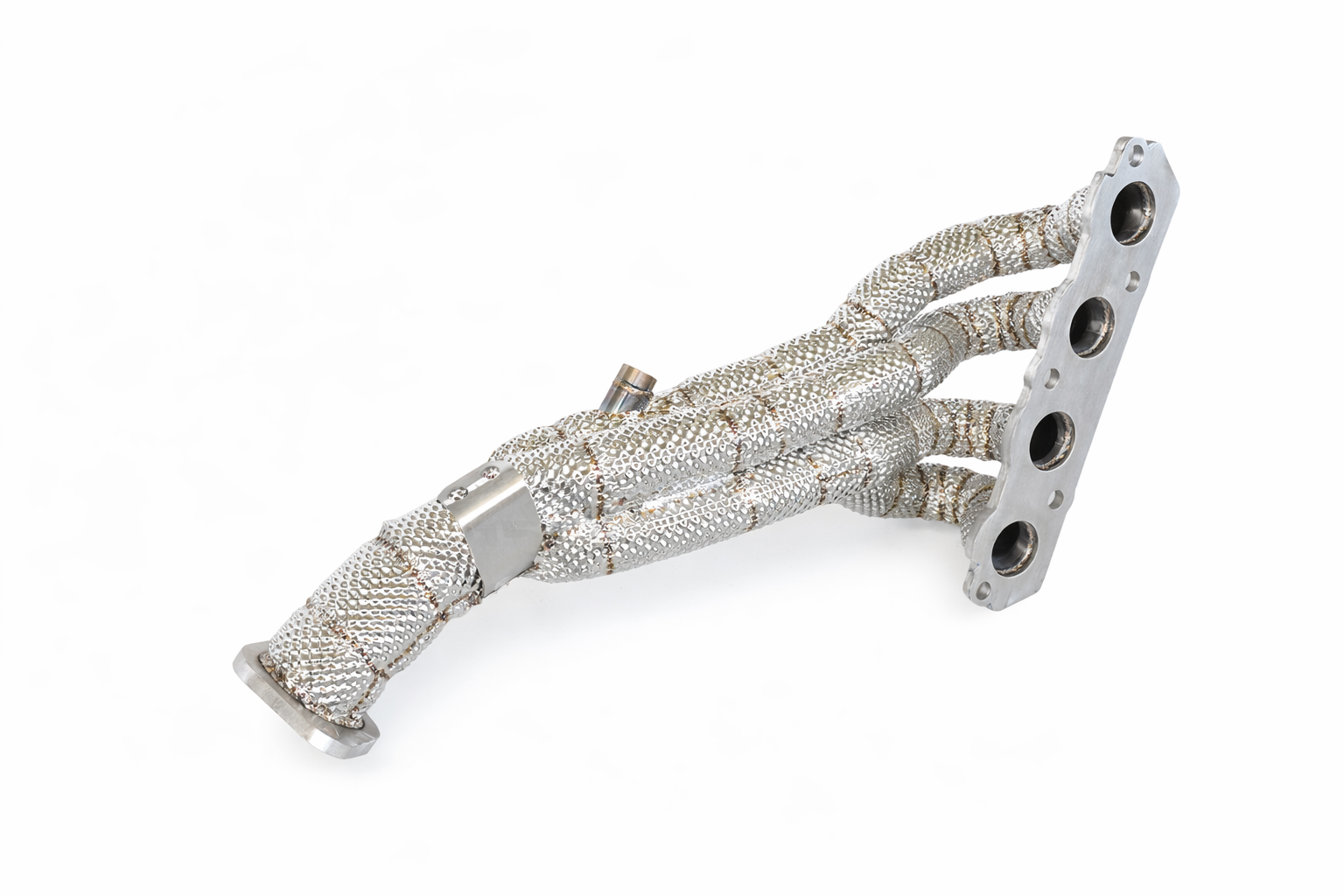

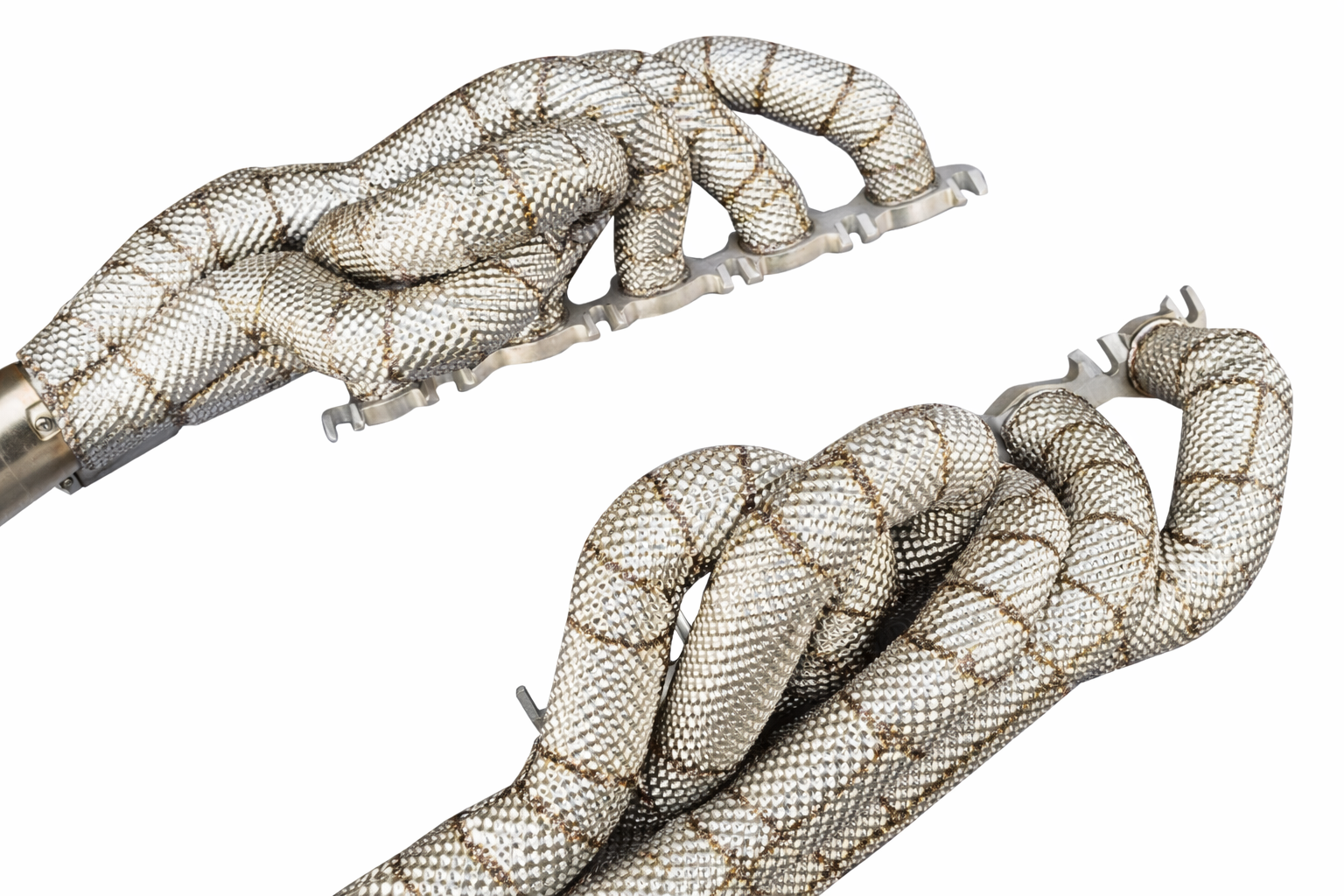

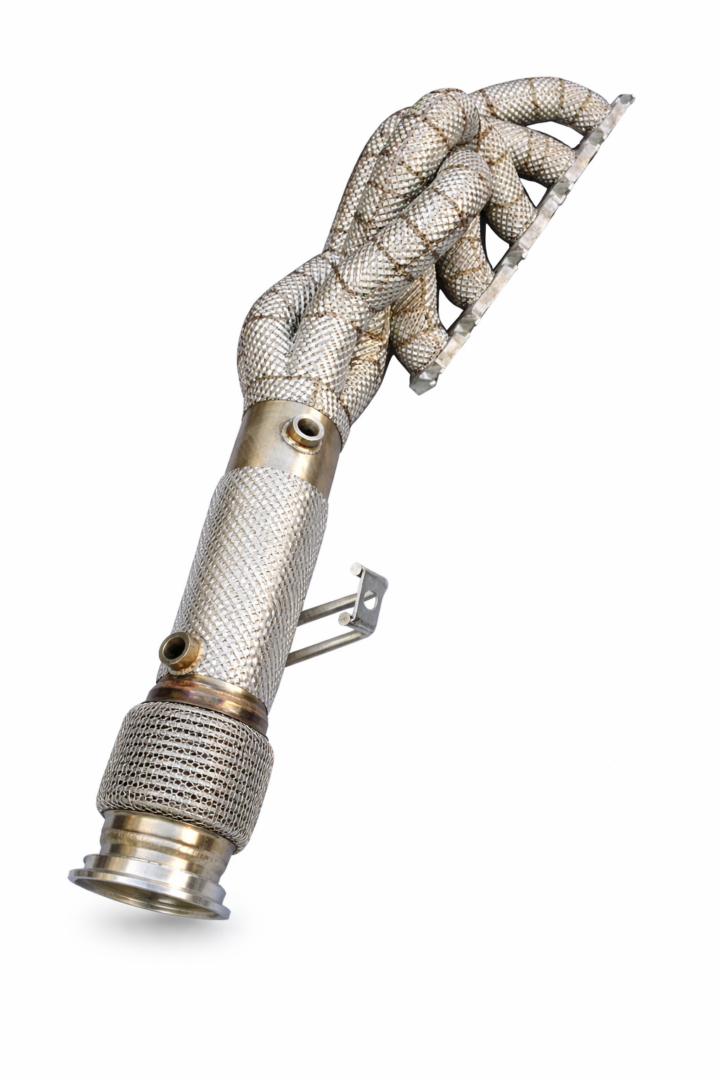

• Exhaust manifold

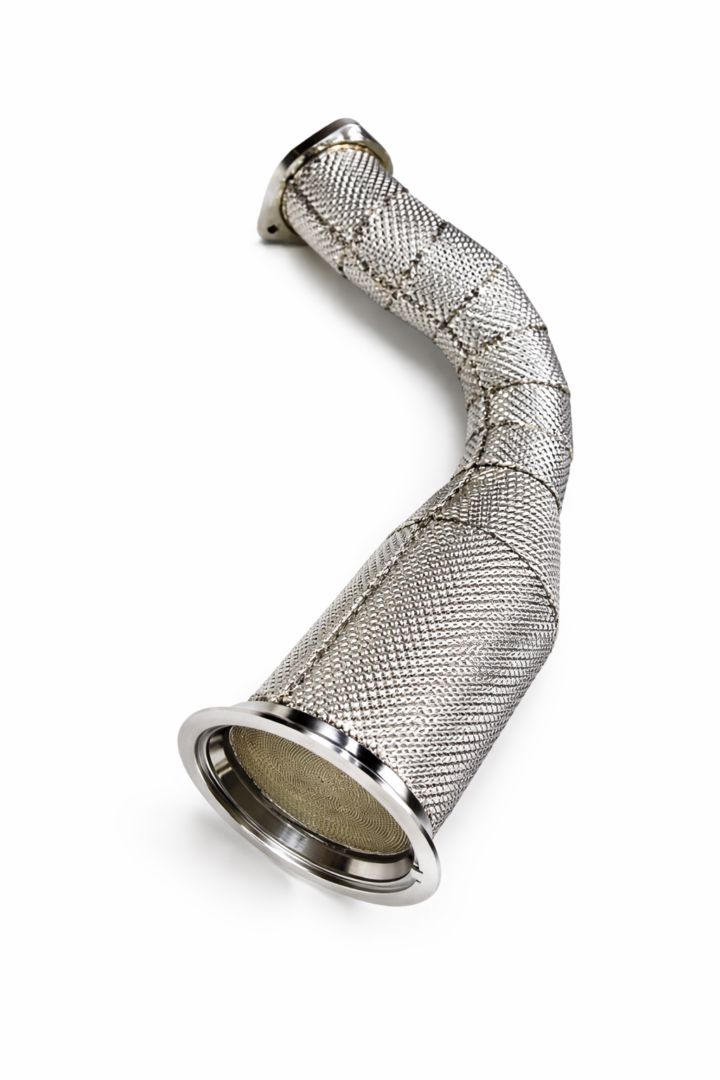

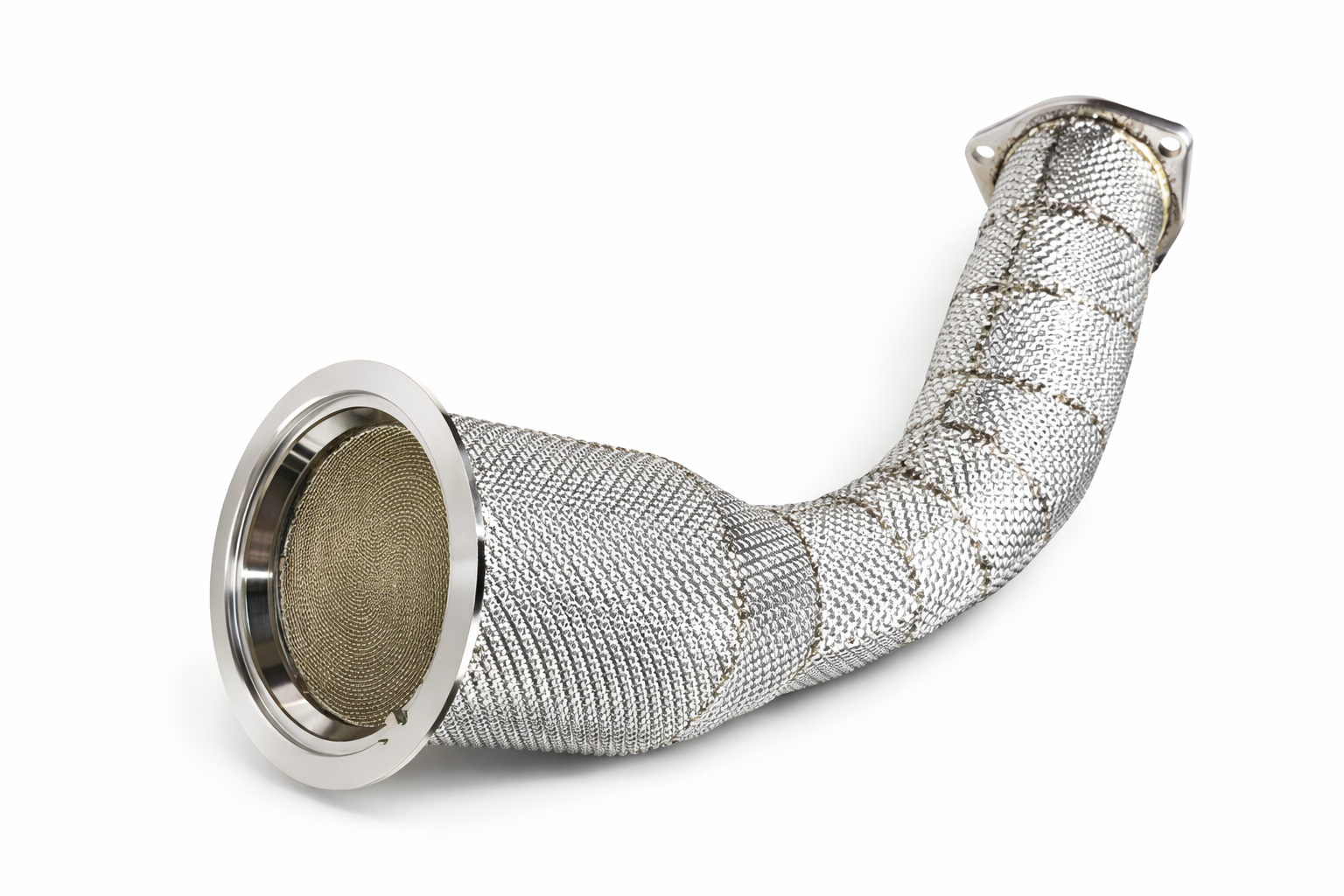

• Downpipe
• Complete exhaust line
• Turbo / wastegate
• Heat shield
• Floor heat shield
• Industrial & agricultural machinery
• Road, track, drift, off-road, motorsport vehicles

---

🔧 Installation method (recommendations)

1️⃣ Thoroughly clean the exhaust
2️⃣ Stick on a single layer of self-adhesive ceramic
3️⃣ Wrap the embossed stainless steel sheet over it
4️⃣ Allow an overlap of approximately 1 cm
5️⃣ Stainless steel must be welded for reliable, long-lasting assembly

➡️ Can be welded with :

• Portable spot welder from our catalogue

👉 Can be dismantled, but will require a new kit to be fitted.

---

✅ Product benefits

• ✅ High-performance thermal insulation up to 1500°C
• ✅ Maximum heat retention in the exhaust
• ✅ Improved engine efficiency
• ✅ Exceptional protection of the engine compartment
• ✅ Extreme resistance to Motorsport stresses
• ✅ Robust and long-lasting installation
• ✅ Product tested and validated in real-life conditions
• ✅ Exclusive to Discount Autosport

---

🎯 Product positioning

🔥 Ultra top of the range
💰 Ultra competitive price
🏁 Developed for the most demanding uses
