Black heat-shrink tubing 2:1, diameter 3 to 25mm Length 5 metres

Code: gainethermo2.1

Black heat-shrink tubing:

  • 2:1 diameter reduction
  • Diameters from 2 to 25mm
  • Electrical insulation
  • Wear protection
  • For automotive wiring harnesses
  • For industrial electrical circuits
  • Sold in lengths of 5 metres


In Stock

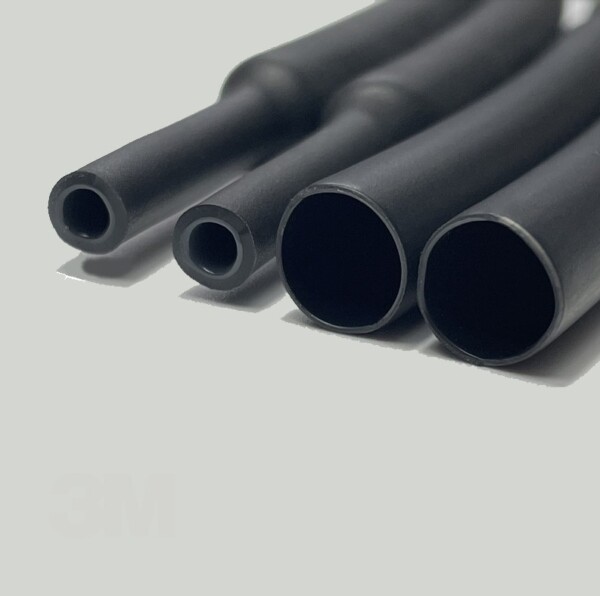

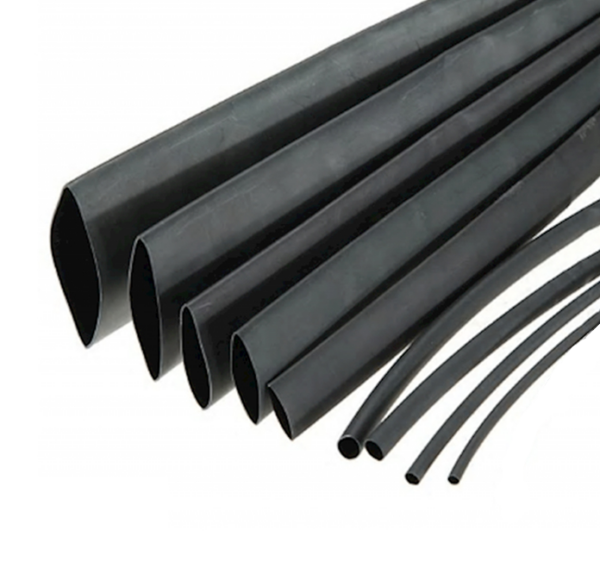

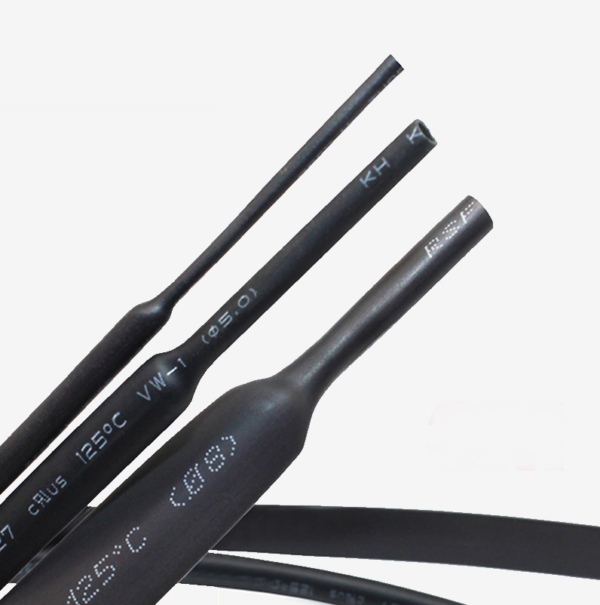

2:1 heat-shrink tubing

3M heat-shrinkable tubing, length 5 metres, choice of diameters from 4 to 25 mm.

Once shrunk, the wiring harness inside the tubing is isolated from any external contamination and protected from freiting and wear.Widely used in competition, in the agricultural sector and on original vehicles, but also in industry.Theuses and applications of heat-shrink tubing are vast:

  • Insulating the weld between 2 electrical wires
  • Protecting a flexible tube or hose of any kind
  • Protecting and sheathing an electrical harness
  • Insulating an electrical connector inlet

6 diameters available:

  • 4mm shrinkable down to 2mm
  • 6mm shrinkable up to 3mm
  • 8mm shrink up to 4mm
  • 10mm shrink up to 5mm
  • 14mm shrink up to 7mm
  • 18mm shrink up to 9mm
  • 25mm shrink up to 12mm

Technical specifications:

  • Length: 5 metres
  • Colour: Black
  • Material: Polyolefin
  • Shrink temperature: from 100°C
  • Maximum operating temperature: +175°C
  • Minimum operating temperature: -75°C
  • Resistant to hydrocarbons and chemicals

Tip: For easier routing and handling, take care to braid your wires inside your sheaths,either using the “mil-spec” method, which is long and tedious but ensures a perfect result,or by twisting the wires by hand, which greatly increases the handling of your sheaths and bundles .

Weight 0,3 kg

4mm, 6mm, 8mm, 10mm, 14mm, 18mm, 25mm
