High temperature 600°C triple insulated glass fibre wire 1mm2 Length 5 metres

Code: fil-antifeu-blanc-1mm

High temperature 600°C triple insulated glass fibre wire 1mm2 Length 5 metres - Image 2

High temperature 600°C triple insulated glass fibre wire 1mm2 Length 5 metres - Image 3

High temperature 600°C triple insulated glass fibre wire 1mm2 Length 5 metres - Image 4

Fire-resistant fibreglass yarn:

Resistance to over 600°C
Cross-section: 1 mm2
Outside diameter: 3.7 mm
Maximum voltage: 600 volts
Maximum current: 15 amps
Sold in 5M lengths
2 layers of thermal insulation
1 layer of electrical insulation
Easy to solder and crimp

19,90€

103 in stock

Based on 1 review

See reviews

Description
Additional information

Triple-insulated wire resistant up to 600°C

Flame-resistant electrical wire that delays the start of fires.

Resistant to over 600°C in direct contact, use this wire in environments subject to high heat.Particularly used in boilers, in automotive engine compartments and in industry in environments with extremetemperatures.Can be used as a conventional electrical wire.Double thickness of fibreglass + aluminium fibre sheath.

Design:

This electrical wire consists of a conductive copper core with a cross-section of 1 mm2
an inner fibreglass sheath that acts as a first layer of thermal insulation
a sheath of Mica fabric + aluminium fibres, which electrically insulates the conductive core
An outer fibreglass sheath that acts as a second layer of thermal insulation.

Technical specifications:

Resistance to +600°C
Conductor cross-section: 1 mm2
Actual outside diameter: 3.7 mm
Maximum voltage: 600 volts
Maximum current: 15 amps
Easy soldering and connection

Tip: For the safest connection, we recommend crimping and then soldering your wires to your lugs and connectors.

Sold in lengths of 5 metres, add 2 or more for a total length of 10 metres or more.

Ideal for electrical harnesses exposed to high temperatures, such as boilers and exhaust manifolds.

Weight	0,4 kg

You may also like…

Electric sleeve
Fireproof glass fibre sheath 600°C length 5m diameter 3 to 25mm for electrical harness
Fibreglass fireproof sheath:
- Resistant to over 600°C
- White colour
- High flexibility
- Easy to install
- Non-friable, can be used like braided sleeving
- Diameter from 3 to 25mm
- Sold in 5M lengths
11 reviews

Price range: 9,39€ through 31,89€
🚚
Delivery expected on Wednesday 10 December
If you order in the next 69 h and 57 min.
Select options This product has multiple variants. The options may be chosen on the product page
Electric sleeve
High-temperature silicone sheath 1000°C diameter 6 to 30mm black length 1 metre
High-temperature sheath 1000°C:
- Made of fibreglass + silicone
- High flexibility
- Easy to install
- Easy to cut
- Choice of internal diameters from 6 to 30mm
- Widely used in aerospace, automotive and industrial applications.
- Sold by the metre, adjust the quantity to receive a single length.
13 reviews

Price range: 8,29€ through 21,19€
🚚
Delivery expected on Wednesday 10 December
If you order in the next 69 h and 57 min.
Select options This product has multiple variants. The options may be chosen on the product page
Electric sleeve
Black heat-shrink tubing 2:1, diameter 3 to 25mm Length 5 metres
Black heat-shrink tubing:
- 2:1 diameter reduction
- Diameters from 2 to 25mm
- Electrical insulation
- Wear protection
- For automotive wiring harnesses
- For industrial electrical circuits
- Sold in lengths of 5 metres
9 reviews

Price range: 4,29€ through 13,49€
🚚
Delivery expected on Wednesday 10 December
If you order in the next 69 h and 57 min.
Select options This product has multiple variants. The options may be chosen on the product page

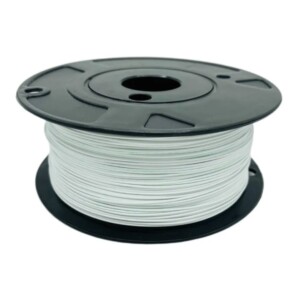

Tefzel wire for Aviation and Motorsport “Mil Spec” wiring harnesses, section 1mm2 18AWG, colour White, Black, Red, length 5 metres – Blanc
