ITT round 4-way bulkhead connector – quarter-turn locking – IP54 – 12/48V – complete kit

Code: connecteur-rond-1/4tour-ITT-4Voies
ITT round 4-way bulkhead connector - quarter-turn locking - IP54 - 12/48V - complete kit
ITT round 4-way bulkhead connector - quarter-turn locking - IP54 - 12/48V - complete kit - Image 2

ITT round bulkhead connector – 4 ways

  • 🔩 Quarter-turn lock – quick & secure installation
  • 💧 IP54 sealing – dust & splash proof
  • ⚡ 15A per channel – compatible with power + sensor signals

  • 🧰 Complete kit: male + female + cable gland + pins

19,90€

10 in stock (can be backordered)

10 in stock (can be backordered)

🚚

Delivery expected on Monday 2 February

If you order in the next 8 h and 33 min.

Share (0)
Total: 0 Total: 0 Total: 0

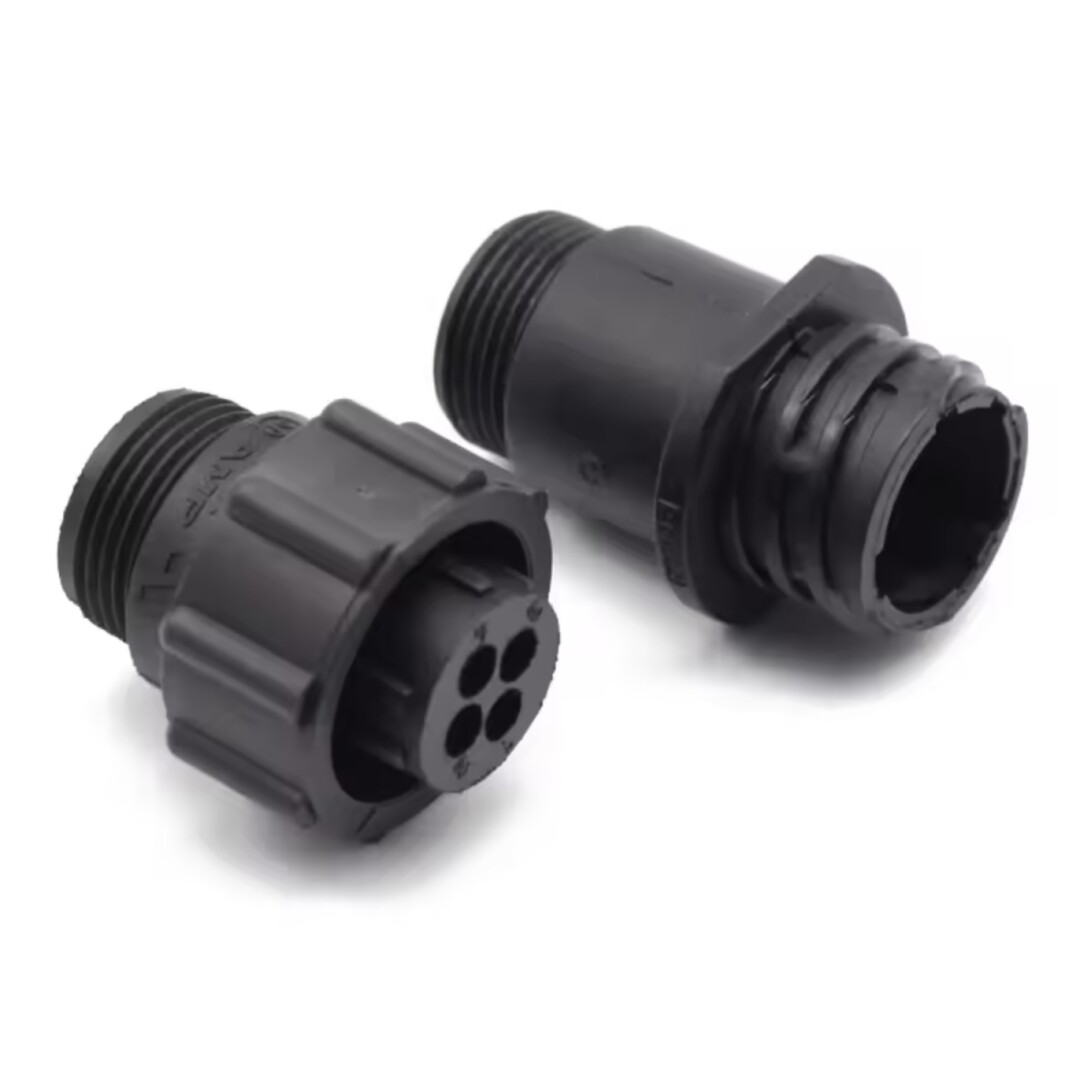

ITT 4-way round bulkhead connector

Designed to pass a complete harness through a bulkhead cleanly, reliably and securely.

With its quarter-turn lock and robust construction, it provides a stable connection for weak signals and power lines up to 15A.

IP54-rated, ideal for motor compartments and applications requiring protection against dust and splashing water.

This ITT 4-way round connector is the professional solution for your harnesses requiring a clean, durable and removable bulkhead.
It can carry :

  • sensor signals (1 to 2A),

  • power lines (up to 15A per channel),
    in a single compact, robust connector.

Its quarter-turn locking system guarantees a perfect hold even in vibrating environments: competition, off-road, agricultural or industrial machinery.

Equipped with a cable gland, it ensures effective retention of the harness, prevents pulling out and offers a professional finish.

⚙️ Technical specifications :

  • Number of channels: 4
  • Type: round bulkhead connector
  • Locking system: quarter-turn (male + female)
  • Protection rating: IP54
  • Rated voltage: 12 V
  • Maximum voltage: 48 V
  • Maximum current: 15 A per channel
  • Temperature range: -50°C to +140°C
  • Housing material: PA66 + aluminium
  • Contact material: silver-plated pure copper
  • Mounting: bulkhead with cable gland included

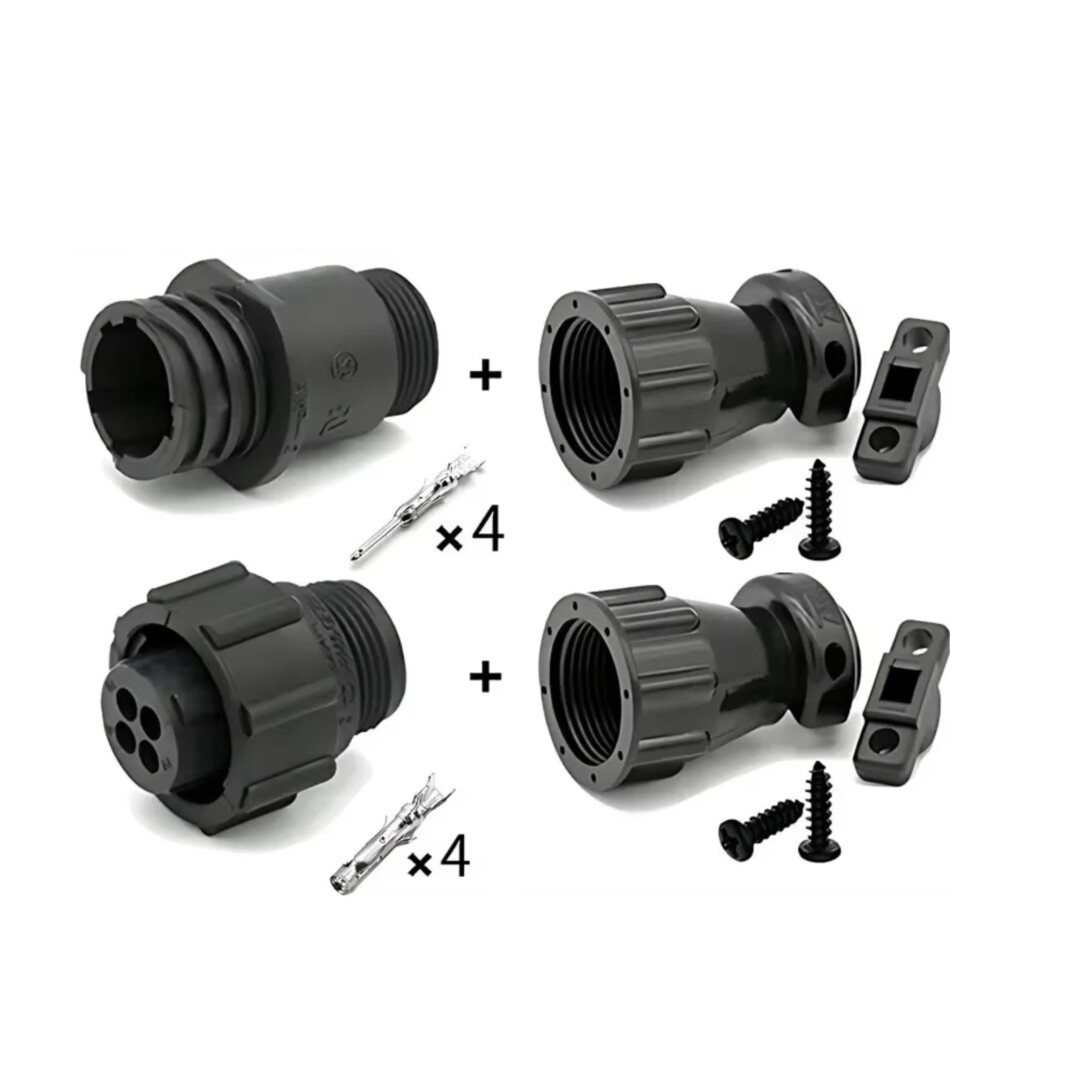

  • Sold: complete kit (male + female + pins + seals + cable gland + cover)

⚡ Applications :

  • 🏎️ Motor harnesses (ECU, sensors, coils)
  • 🚜 Agricultural & industrial machinery
  • 🔧 On-board equipment and special vehicles
  • 🛥️ Protected nautical installations
  • 🎯 Clean and professional bulkhead passage
  • 💡 Harnesses requiring rapid dismantling

Product benefits:

✅ Quarter-turn locking: quick and secure
✅ 4 channels for signals + power
✅ IP54: dust + splash water resistant
✅ Silver-plated copper contacts → excellent conductivity
✅ Resistant from -50°C to +140°C
✅ Complete kit ready for installation
✅ Professional quality Discount Autosport

Weight 0,6 kg
